transmission System OSN 1500 STM-4 SDH
Short Description:
| Specifications | |
| OSN 1500A | OSN 1500B |
| Subrack Dmensions | |
| 131 mm (H) x 444 mm (W) x 263 mm (D) | 221 mm (H) x 444 mm (W) x 263 mm (D) |
| Switching Capacity | TDM: 60 Gbit/s (higher order), 20Gbit/s (lower order) |

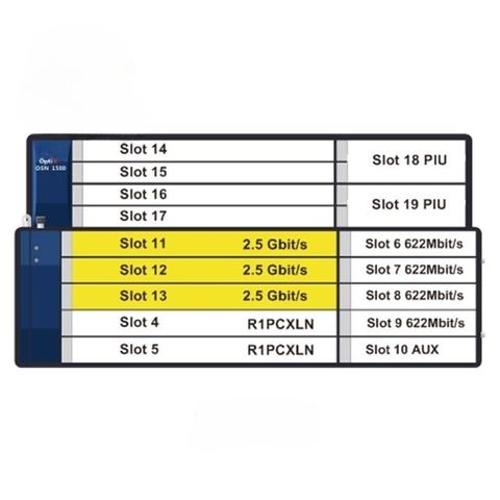

| Service Slots | |
| 10 slots for processing boards | 12 slots for processing boards and 4 slots for interface boards |
| Supported Interfaces | |
| MSTP interfaces | •STM-1/4/16, E1/E3/E4/T1/T3, FE/GE, DDN, IMA/ATM, FEC/EFEC interface, E1 optical interface, SAN, Video |
| PCM interfaces | •FXS/FXO, 2/4 wire/E&M, V.35/X.21/V.11/V.24/V.28, RS232/422, G.703 64Kbit/s codirectional interface |
| Packet transport interfaces | E1, FE/GE |
| WDM interfaces | •40-channel DWDM interfaces, compliant with ITU-T G.694.1 |
| •8-channel CWDM interfaces, compliant with ITU-T G.694.2 | |
| Power Supply | DC: -48V DC or -60V DC,AC: 220V/110V AC |
| Maximum Number of Services Supported by a Single Subrack | |
| Service Interface | |
| Max | |
| ServiceInterface | |
| Max | |
| OSN1500A | |
| OSN1500B | |
| OSN1500A | |
| OSN1500B | |
| STM-16 | |
| 4 | |
| 5 | |
| STM-4 | |
| 10 | 22 |
| STM-1 | |
| 42 | |
| 54 | |
| STM-1(electrical) | |
| 4 | 18 |
| E4 | |
| - | |
| 8 | |
| E3/T3 | |
| 6 | 27 |
| E1/T1 | |
| 64 | |
| 190 | |
| E1 Optical | |
| 16 | 24 |
| FE | |
| 32 | |
| 56 | |
| GE | |
| 8 | 12 |
| DDN(N×64K) | |
| - | |
| 16 | |
| Framed E1 | |
| - | |
| 16 | |
| FXS/FXO | |
| 24 | |
| 36 | |
| 2/4 wire/E&M | |
| 12 | 18 |
| STM-1 ATM | |
| 8 | |
| 12 | |
| STM-4 ATM | |
| 2 | 3 |
| ESCON | |
| 8 | |
| 12 | |
| FICON/FC100 | |
| 4 | 6 |
| FC200 | |
| 2 | |
| 3 | |
| DVB-ASI | |
| 8 | 12 |
| Clock Synchronization | •Line clock source |
| Auxiliary Interface | •Orderwire interface |
