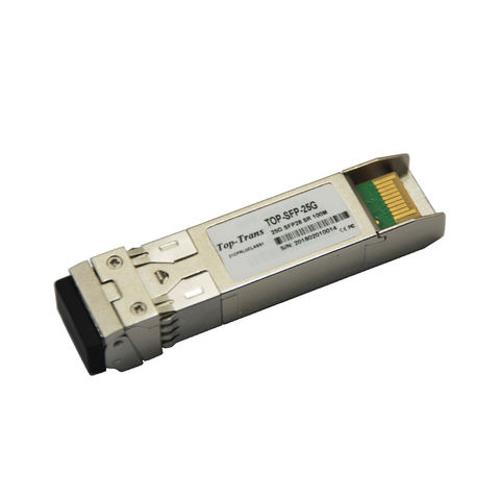

02311KNR SFP-25G-SR SFP28 25GBASE-SR 850nm 100m MMF Optical transceiver module for CloudEngine 9800 Data Center Switch
Short Description:
| Module name | SFP-25G-SR |
| Form factor | SFP28 |
| Application standard/Type | 25GBASE-SR |
| Connector type | LC |
| Optical fiber type | MMF |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Working case temperature [°C (°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 25Gbit/s |
| Target transmission distance [km] | When the bit error rate (BER) is 10^-12: Multimode fiber (OM3) (with diameter of 50 μm): 30 m Multimode fiber (OM4) (with diameter of 50 μm): 40 m When the BER is 5*10^-5: Multimode fiber (OM3) (with diameter of 50 μm): 70 m Multimode fiber (OM4) (with diameter of 50 μm): 100 m |
| Modal bandwidth [MHz*km] | Multimode fiber (OM3): 2000 MHz*km Multimode fiber (OM4): 4700 MHz*km |
| Center wavelength [nm] | 850 nm |
| Maximum Tx optical power (AVG) [dBm] | -8.4 dBm |
| Minimum Tx optical power (AVG) [dBm] | 2.4 dBm |
| Minimum extinction ratio [dB] | 2 dB |
| Rx sensitivity (OMA) [dBm] | -10.3 dBm |
| Overload power (AVG) [dBm] | 2.4 dBm |
