| Scalability |
Full-fabric architecture with a maximum of 239 switches
|
| Certified Maximum |
6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS fabrics; larger fabrics certified as required |
| Fibre Channel Ports |
Maximum of 24 ports configuration.
Switch mode (default): 8-, 16-, and 24-port configurations. can be an E, F, M and D ports
Brocade Access Gateway default port mapping: 16 F Ports, 8 N Ports
|
| Port on Demand
(PoD)
|
8-port SW License with 8 x 16Gbps SWL FC transceivers
8-port SW License with 8 x 32Gbps SWL FC transceivers
|
| Performance |
Fibre Channel: 4.25Gbps line speed, full duplex; 8.5Gbps line speed, full duplex; 14.025Gbps line speed, full
duplex; auto-sensing of 4, 8, 16 and 32Gbps port speeds
|
| Aggregate Bandwidth |
768Gbps end-to-end full duplex |
|
Maximum Fabric
Latency
|
Latency for locally switch ports is 900 ns (including FEC) |
|
Port Types
|
F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports
Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
|
| Media Types |
Support any combination of 16/32Gbps Short Wavelength (SWL) and 16/32Gbps Long Wavelength (LWL) or
16Gbps Extended Long Wavelength (ELWL) hot-pluggable transceivers
|
| Rack-mount Rail
Kits
|
Fixed rail kit is included standard, Mid-mount rack kit (Part # 01KP864) –optional |
| Software Offerings |
Enterprise Software Bundle includes Trunking, Fabric Vision, Extended Fabric: included standard or optional
depending on model
|
| Dimensions/Weight |
Height: 4.29cm (1.68 in.); Width: 42.8cm (16.8 in.); Depth: 30.6cm (12.06 in.)/Weight: 5.73kg (12.65 lbs) fully
loaded
|

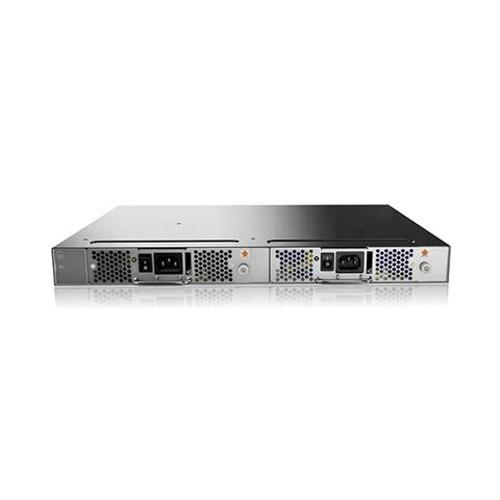

| Power and Cooling |
Base switch includes a single, fixed power supply with four integrated system cooling fans |
|
Power Consumption
|
76.52W with all 24 ports populated with 32Gbps SWL optics
55.83W for idle configuration (all optics loaded but not initialized)
|
