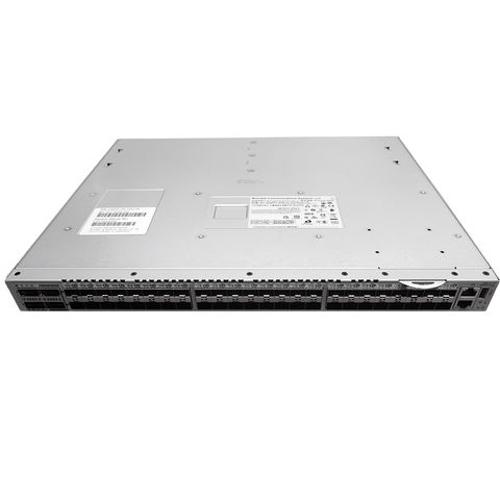

BR-G620-24-16G-R Brocade G620 Fibre Channel Switch 24 active ports with 16G SW SFP
Short Description:
| Main features | Systems Architecture |
| Power consumption | 204 W with all 64 ports populated with 48×32 Gbps SFP+ SWL optics and 4× (4×32 Gbps) QSFP SWL optics 85 W for empty chassis with no optics |
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified maximum | 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Management access | 10/100/1000 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port |
| ISL Trunking | Frame-based trunking with up to eight 32 Gbps SFP+ ports per ISL trunk or up to two 128 Gbps QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz |
| Power supply | Dual, hot-swappable redundant power supplies with integrated system cooling fans |
