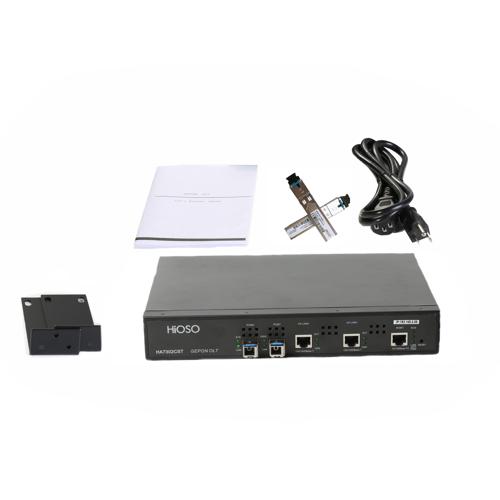

2 PON OLT Mini EPON 2ports OLT with 2sfp px20++++ pon modules
Short Description:
| Parameter | Specifications |
| Operating wavelength | 1310(RX)/1490(TX) |
| Optical power | +0 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 20km |
| Max splitter ratio | 1:64 |
| Capacity | 2 PON, standard: 64 ONUs maximum:128 ONUs |
| MAC | 8K |
| Uplink port | 2 1000M Ethernet RJ45 ports |
| PON port | 2 SFP fiber ports |
| Control port | RJ45 console port, to debug the device |
| MTBF | 100,000 hours |
| EPON traits | Support IEEE802.3ah |
| Support DBA with minimum1Kbps granularity adjustable | |
| Support 1Gbps up link and down link symmetrical bandwidth | |
| Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management, maintenance and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Protocols supported | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Management | CLI and GUI, SNMP, WEB |
| Functions | Support 1GMPv1/v2 protocol report, query and leave message mouse |
| Support ONU remote configure and upgrade | |
| Support real-time alarm detection, accurate fault location | |
| Support the alarm information sent to the mailbox, support SMS alarm |
