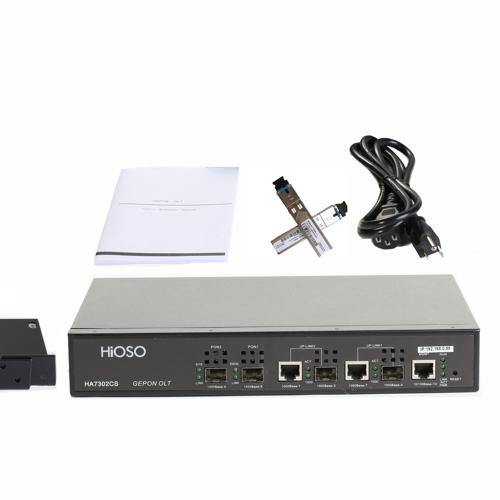

FTTH OLT 1.25G fiber optic equipment mini 2 ports epon olt WITHOUT SFP

Short Description:


Product Detail

Technical Specification Tomato&Potato
Parameter Specifications
Operating wavelength 1310(RX)/1490(TX)
Optical power +0 ~ +7dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:32
Capacity 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC 8K
Uplink port 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
PON port 2 SC fiber ports
Control port RJ45 console port, to debug the device
MTBF 100,000 hours
EPON traits Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Protocols supported Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Management Support 1GMPv1/v2 protocol report, query and leave message mouse
Support real-time alarm detection, accurate fault location
Support the alarm information sent to the mailbox, support SMS alarm
Working Environment
Power supply AC220V
Power consumption 11W
Operating temperature -10~55℃
Storage temperature -40~70℃
Humidity 5%~90% non-condensing
Dimension 276mm(length) ×200mm(width) ×44mm(height)

xxxxxxx.
