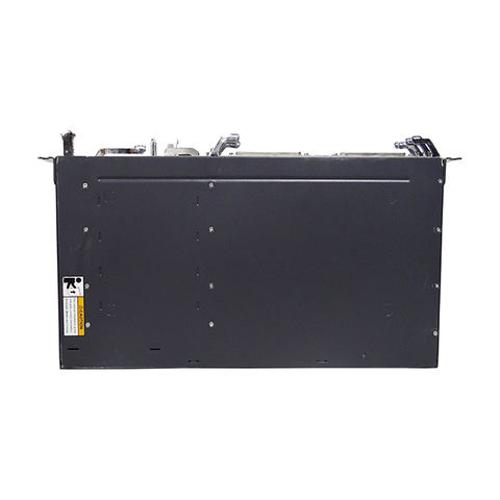

MA5626 24 ports gpon onu mdu
Short Description:
| AC power port | |
| - | |
| 1 | Connects to 220 V AC power. |
| Ground point | |
| - | |
| 1 | Connects the device to the ground. |
| Uplink optical port | |
| GPON | |
| 1 | Provides one uplink port: One GPON port |
| FE electrical port | |
| 1-8 1-16 1-24 | |
| 8, 16, or 24 | Provides Ethernet adaptive access rates of 10 Mbit/s and 100 Mbit/s. |
| POTS port | |
| POTS 1-8 POTS 1-16 POTS 1-24 | |
| 1 | Supports POTS access and provides the VoIP, FoIP, and MoIP services. |
| Maintenance serial port | |
| CONSOLE | |
| 1 | Provides local and remote maintenance. Supports system configuration using tools, such as HyperTerminal, through command line interface (CLI). Supports local device management through any service port. |
