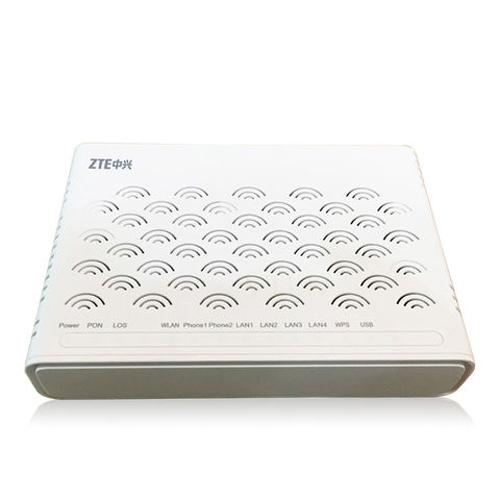

EPON ONU indoor mini size 4 ports ZTE wifi onu

Short Description:


Product Detail

Technical items Description
PON interface  1 EPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps
Wavelength  EPON Tx 1310nm, EPON Rx 1490nm
Optical interface  SC/APC connector
WLAN  Compliant with IEEE802.11b/g/n, 300Mbps,  2T2R One internal antenna and one external antenna
WLAN throughput  100Mbps @ 40users, 1518bytes, no-encryption  107Mbps @ 40users, 512bytes, encryption
LAN interface  4x 10/100Mbps auto adaptive Ethernet interfaces, Full Duplex / Half Duplex,  AUTO-MDIX, RJ45 connectors
Router throughput  Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes
Downstream POTS interface  2 FXS, RJ11 connectors
Indicators 14 indicators, for status of power supply, PON, LAN and POTS .
DC power supply  +12V, external AC-DC power adaptor
Power consumption  ≤10W
Operating condition  Operating temp: -5~+55℃  Operating humidity:10~90%(non-condensed)
Storing condition  Storing temp: -30~+60℃  Storing humidity:10~90%(non-condensed)
Dimension  205mm*50mm*138mm(W*H*D)
Net weight  0.4Kg

xxxxxxx.
