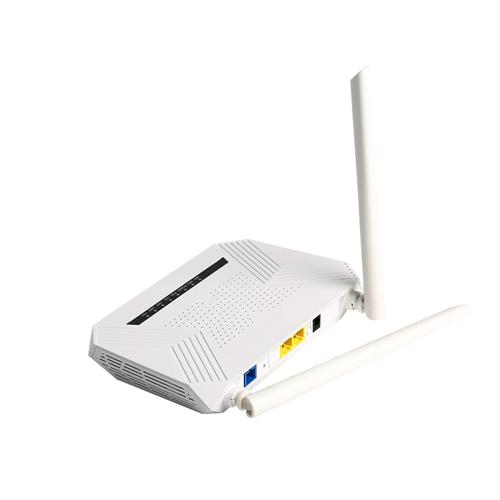

Gepon onu 2 + wifi xpon onu 1 Pon port onu supply fttx solutions
Short Description:
| Parameter | Specification |
| PON Interface | 1 GPON BOB （Bosa on Board） |
| Receiving sensitivity: ≤-28dBm | |
| Transmitting optical power: +1~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/UPC Connector |
| Design Scheme | RTL9602C+RTL8192FR+Si32192 BOB(RTL8290B) |
| Chip Spec | CPU 625MHz,DDR2 64MB |
| Flash | SPI Nor Flash 16MB |
| LAN Interface | 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless | Compliant with IEEE802.11b/g/n, |
| Operating frequency: 2.400-2.4835GHz | |
| support MIMO, rate up to 300Mbps, | |
| 2T2R,2 external antenna 5dBi, | |
| Support: Multiple SSID | |
| Channel: Auto | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| LED | 7 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2 |
| Push-Button | 2,For Function of Reset, WPS |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%（non-condensing） | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%（non-condensing） | |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 180mm×107mm×28mm（L×W×H） |
| Net Weight | 0.15Kg |
