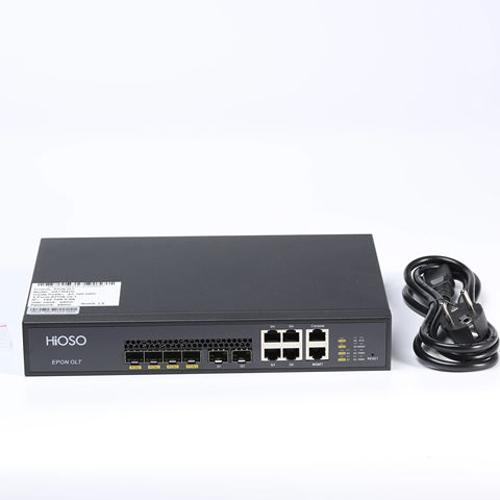

Pizza box EPON OLT 2 1000M SFP ports, 4 1000M LAN uplink ports With 4 PX20+++ pon modules

Short Description:


Product Detail

Parameter Specification
Operating wavelength 1310(RX) /1490(TX)
Optical power +2.5 ~ +7dBm
Receiving sensitivity -30dBm
Max distance 20km
Max splitter ratio 1:64
Capacity 4 PON, maximum 256pcs ONU
MAC 8k
Uplink port 2 1000M SFP ports + 4 1000M LAN RJ45 ports
PON port 4 SFP 1000M fiber ports
Control port 1 10/100M MGMT NMS RJ45 port;1 Console(RJ45), to debug the device;
MTBF 100,000 hours
EPON traits Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Other functions Support IGMPv1/v2, IGMP Snooping and IGMP ProxySupport remote config onu, remote upgrade ;Real time alarm
Protocols supported Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree
Support IEEE 802.1P QoS、IEEE802.3X Flow Control
Support IEEE802.3ad Trunk、IEEE802.1W RSTP
Network management Support GUI management based on SNMP
Support WEB/CLI, Support inband and outband management
