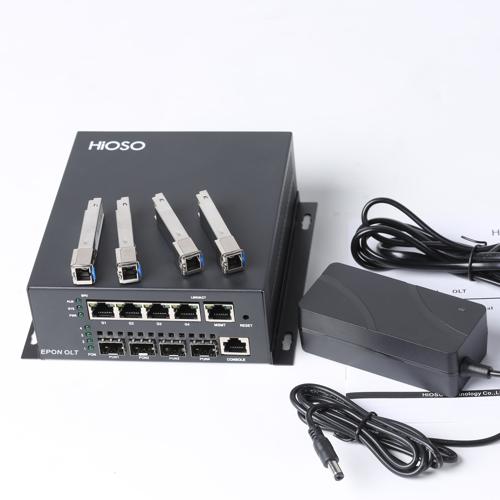

ftth olt 4 uplink ports epon xpon mini epon 4pon olt epon without PX20+++ PON SFP moules
Short Description:
| Product Name | HA7004S EPON OLT |
| Wavelength | 1310（RX）/1490（TX） |
| Optical power | +2.5~ +7dBm |
| Receiving Sensitivity | -27dBm |
| Maximum distance | 20km |
| Maximum optic ratio | 1:64 |
| Capacity | 4PON System, 256 ONUs |
| MAC | 16K |
| Port | 4 Gigabit SFP PON ports |
| 4 GE Uplink ports | |
| 1 FE management port | |
| 1 RS232 DB9 serial port | |
| MTBF | 100000 hours |
| Feature | Support IEEE802.3ah |
| Support DBA with minimum1Kbps granularity adjustable | |
| Support 1Gbps up link and down link symmetrical bandwidth | |
| Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management, maintenance and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Standard | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Network management | Support GUI management based on SNMP (work with rack) |
| Support WEB / CLI |
