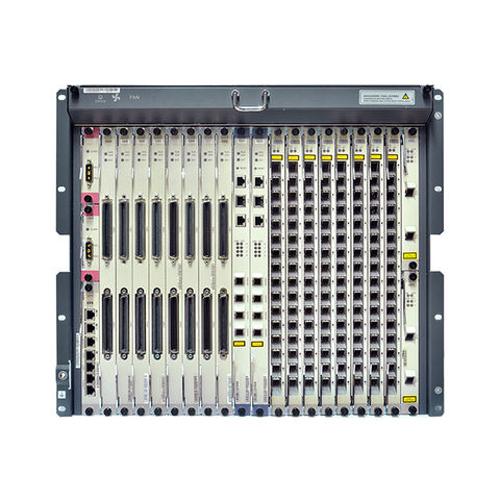

MA5600T OLT GPON GPFD GPBD
Short Description:
| Maintenance network port | It supports local and remote maintenance, allowing the operator to configure the system from the CLI through the outband management connection. |
| Maintenance serial port | It supports local and remote maintenance, allowing the operator to configure the system from the CLI through software such as HyperTerminal. The default baud rate is 9600 bit/s. |
| Environment monitoring serial port | The monitored environmental monitoring parameters are reported to the MA5600T through the environmental monitoring serial port. |
| FE upstream optical port | It supports a full-duplex data rate of 100 Mbit/s to provide upstream service transmission. |
| GE upstream electrical port | It supports a full-duplex data rate of 1000 Mbit/s to provide upstream service transmission. |
| GE upstream optical port | It supports a data rate of 1.25 Gbit/s to provide upstream service transmission. |
| E1 upstream port | It provides E1 upstream connection. E1 signals are transparently transmitted through GPON. |
| ADSL2+ port | It provides ADSL2+ access. It supports a maximum upstream rate of 2.3 Mbit/s and a maximum downstream rate of 24 Mbit/s. |
| SHDSL port | It provides SHDSL access. It supports symmetrical transmission. The symmetrical rate ranges from 192 kbit/s to 5696 kbit/s. |
| VDSL2 port | It provides VDSL2, which is compatible with ADSL/ADSL2+. It supports a maximum upstream rate of 50 Mbit/s and a maximum downstream rate of 80 Mbit/s. |
| POTS port | It supports the VoIP service to access POTS users at the rate of 64 kbit/s. |
| P2P FE optical port | It supports a data rate of 100 Mbit/s to provide P2P Ethernet optical access. |
| GPON optical port | It provides GPON access. It supports an upstream rate of 1.244 Gbit/s and a downstream rate of 2.488 Gbit/s. |
