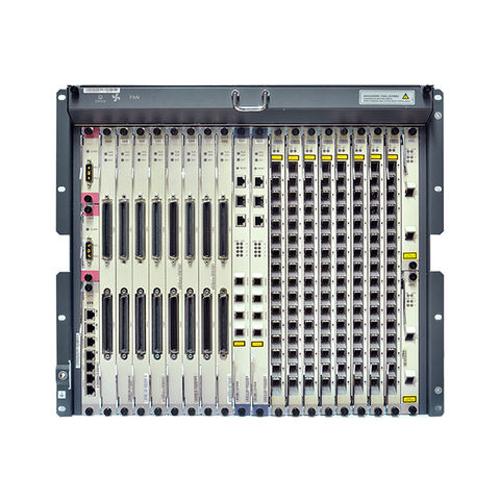

MA5680T Large GPON OLT SCUN
Short Description:
| Parameter | Specification |
| Operating wavelength | 1310 (RX)/1490(TX) |
| Optical power | +2 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 60km |
| Max splitter ratio | 1:256 |
| Capacity | 8 PON, 256 ONUs |
| Upstream ports | 10 GE optical and GE optical/electrical ports |
| PON port | 8 SC fiber port |
| Control port | RJ45, RS232, to debug the device |
| MTBF | about100,000 hours |
| Access Capacity | 64 x 10G GPON, 256 x GPON ,768 x GE/FE |
| Dimensions (H x W x D) | 447 mm x 490 mm x 275.8 mm |
| Operating Environment | -25°C -55°C |
| Relative Humidity (RH) | 5%-95% |
| Operating voltage | -38.4V-72V |
