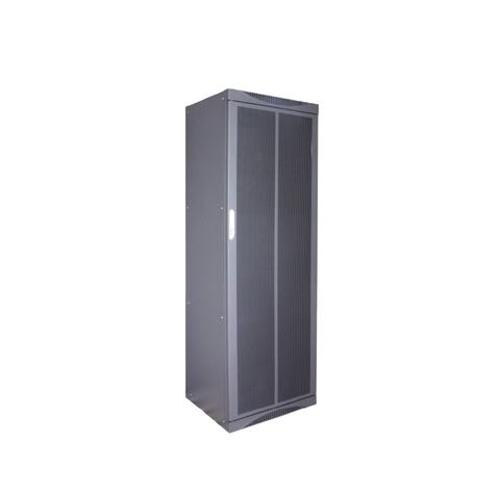

HUAWEI MSAN Cabinet N66E-18 for MA5600T MA5608T MA5603T
Short Description:
| Standard compliance | ETSI side (21-inch): ETSI 300 119-3 IEC side (19-inch): IEC 60297-3 |
| Weight (empty cabinet) | 67.3 kg |
| Dimensions (W x D x H) | 600 mm x 600 mm x 1800 mm |
| Installation dimensions of the cabinet top | Installation interface Hole positions: 450 mm x 400 mm (W x D) Nut specifications: six M8 nuts |
| Installation dimensions of the cabinet bottom | Installation interface Hole positions: 413 mm x 487 mm (W x D) Bolt specifications: four M12 expansion bolts |
| Distance between mounting bar holes | ETSI side: 1 SU = 25 mm IEC side: 1 U = 44.45 mm |
| Available space | ETSI side: 67 SU IEC side: 37 U |
| Angle opening width | ETSI side: 500 mm IEC side: 450 mm |
| Fixing centres | ETSI side: 515 mm IEC side: 465 mm |
| Distance between the installation surface of the mounting bar and the inner side of the cabinet door | ETSI side: 54 mm IEC side: 95 mm |
