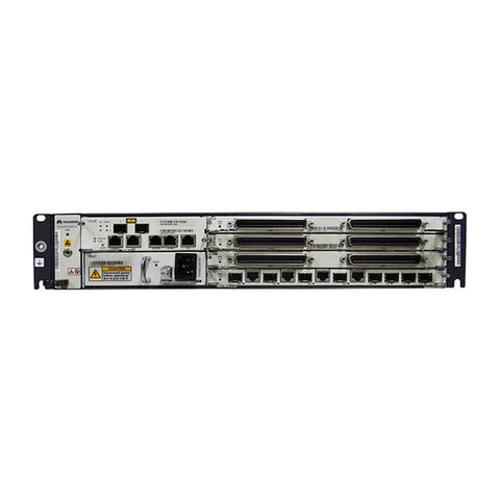

MA5616 CCUB CCUD Control Board Mini IP DSLAM
Short Description:
| Features | |
| CCUB control board | CCUC control board |
| GPON | |
| ITU G.984-compliance | |
| ITU G.984-compliance | |
| 8 T-CONTs | 32 T-CONTs |
| 128 GEM ports | 1000 GEM ports |
| Broadband | |
| 4K VLANs, supporting QinQ and stacking VLANs | |
| 4K VLANs, supporting QinQ and stacking VLANs | |
| 4K MAC addresses, supporting VMAC | |
| 4K MAC addresses, supporting VMAC | |
| VLAN switching | |
| VLAN switching | |
| Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
| Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
| 802.1p, supporting PQ and WRR flow control, and ACL | |
| 802.1p, supporting PQ and WRR flow control, and ACL | |
| Voice | |
| SIP and H.248 | |
| SIP and H.248 | |
| ISDN BRA port | |
| ISDN BRA port | |
| POTS short-loop design | |
| POTS short-loop design | |
| ADSL2+ | |
| Compliance with ITU-T G992.1 to G992.5, and T1.413 | |
| Compliance with ITU-T G992.1 to G992.5, and T1.413 | |
| Annex M | |
| Annex M | |
| ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| VDSL2 | |
| G993.2-compliance | |
| G993.2-compliance | |
| 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles | |
| 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles | |
| 2-wire VDSL2 bonding | |
| 2-wire VDSL2 bonding | |
| SHDSL | |
| G991.2-compliance | |
| G991.2-compliance | |
| G.SHDSL.Bis, supporting ATM and PTM | |
| G.SHDSL.Bis, supporting ATM and PTM | |
| EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| Multicast | |
| IGMPv2 and IGMPv3 | |
| IGMPv2 and IGMPv3 | |
| IGMP proxy and IGMP snooping | |
| IGMP proxy and IGMP snooping | |
| A maximum of 1024 configurable multicast programs in the systemA maximum of 256 multicast usersA maximum of 16 concurrent multicast programs for each user | |
| A maximum of 1024 configurable multicast programs in the systemA maximum of 256 multicast usersA maximum of 16 concurrent multicast programs for each user | |
| Security | |
| PPPoE + and DHCP option82 | |
| PPPoE + and DHCP option82 | |
| Static and dynamic MAC address binding | |
| Static and dynamic MAC address binding | |
| Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering | |
| Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering | |
| Anti-DoS attack and firewall | |
| Anti-DoS attack and firewall | |
| Maintenance and management | |
| SNMPv1, SNMPv2, and SNMPv3 | |
| SNMPv1, SNMPv2, and SNMPv3 | |
| Telnet and SSHv2 | |
| Telnet and SSHv2 | |
| Remote and batch pre-deployment | |
| Remote and batch pre-deployment | |
| Remote upgrade and monitoring | |
| Remote upgrade and monitoring |
