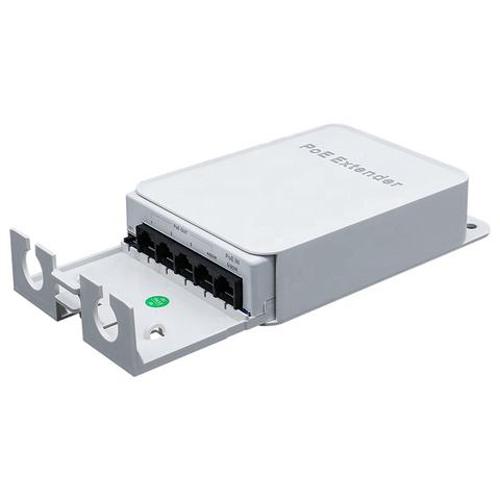

| Network Standard |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Port |
4*10/100Mbps RJ45 power supply port
1*10/100Mbps RJ45 receiving port
|
| POE Power |
The whole power is 90W, the first output port has a maximum output power of 60W, and the 2nd-4th output ports have a maximum output power of 30W
|
| POE Connection |
POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8-
POE output power supply core: 1/2+, 3/6-
250M Transmission (Manually Open)
|
| Performance |
Store and forward
MAC address table 1k
Switching capacity 1Gbps
|
| Forwarding Rate |
10BASE-T:14880PPS/port
100BASE-tx:148800pps/port
|
| Port Function |
Power priority mechanism, fast and forward, MAC automatic
learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode
|
| Working Environment |
Operating Temperature:-10℃ - -55℃ |
| Power |
Input:DC44-57V,90W;Output:DC44-57V, 85W |
| Weight &Size |
80g
98mmx148mmx34mm(L×W×H)
|
