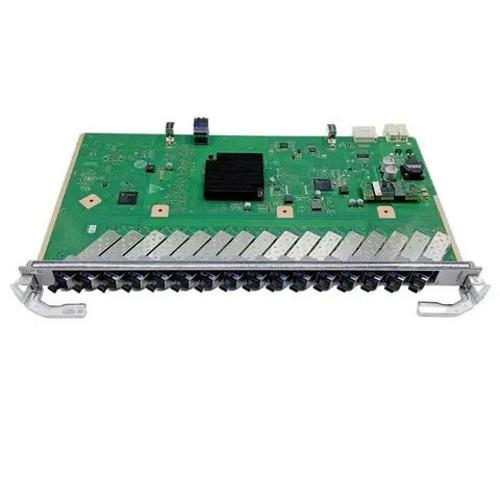

Huawei 16 Ports Gpon Service Board GPSF For Ma5800 Series Card GPSF C++ 16port epon OLT interface fiber optic equipment
Short Description:
| Part Number | GPSF 16 port GPON interface card |
| Model | H901GPSF |
| Product Description | 16-port GPON OLT Interface Board |
| Product Series | MA5800-X7 |
| Dimensions (H x W x D) | 442 mm x 268.7 mm x 263.9 mm |
| Maximum Number of Ports in a Subrack | 112 x GPON/EPON336 x GE/FE56 x 10G GPON/10G EPON56 x 10G GE224 x E1 |
| Switching Capacity of the System | 7 Tbit/s |
| Maximum Number of MAC Addresses | 262,143 |
| Maximum Number of ARP/Routing Entries | 64K |
