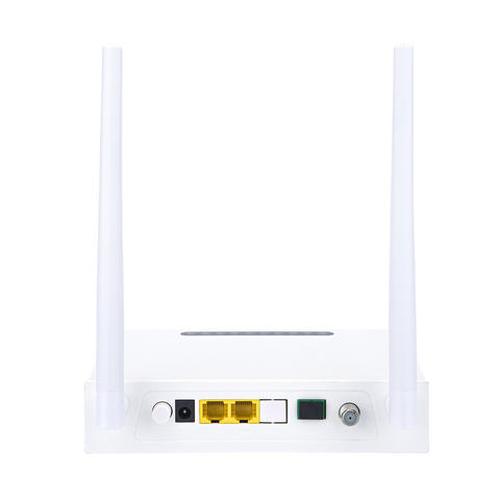

XPON ONU Factory Manufacturer Best Price 1G1F Wifi HGU 1000M XPON ONT

Short Description:


Product Detail

Technical Item Details
PON interface 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM
CATV Interface RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz,  RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), >35(-10dBm)
LED 9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN, NORMAL(CATV)
Push-Button 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition Temperature : 0℃~+50℃ Humidity :10%~90%(non-condensing)
Storing Condition Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing)
Power supply DC 12V/1A
Power Consumption <6W
Net Weight <0.4kg

xxxxxxx.
