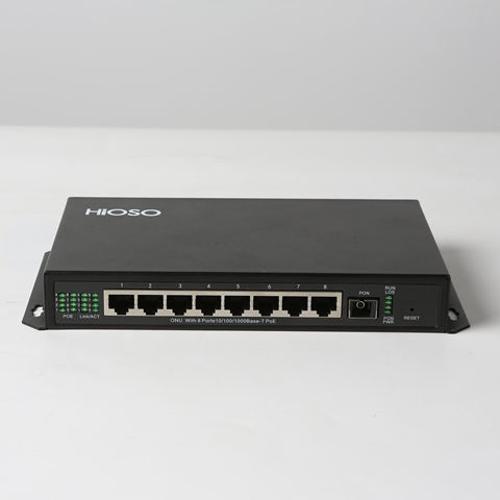

HiOSO GPON ONU has high quality wall mounted metal housing with 8 gigabit POE ports and 1 gigabit SFP light port
Short Description:
| parameter | specifications |
| operating wavelength | 1310(TX)/1490(RX) |
| luminous power | 0~+5dBm |
| receiving sensitivity | -28dBm |
| Maximum transmission distance | 20km |
| Cache space | 1.25MB |
| MTBF | 100000 Hours |
| PON interface type | SC/PC |
| GPON characteristic | Full support for ITU-TG.984.x standards Support for dynamic bandwidth allocation (DBA) Support for ONU Autodiscovery and registration (plug and play) |
| POE | IEEE802.3af 15.4W,IEEE802.3at 30W,Automatic identification of automatic power supply of the receiving equipment |
| Support protocol standards | Support IEEE802.3,IEEE802.3u IGMP Snooping V2 Support IEEE802.1Q VLAN Support IEEE802.1P QoS |
| administrator | Cooperate with the local OLT to complete the management configuration and software upgrade of ONU |
| power | DC48V |
| power dissipation | 7.2W |
| working temperature | -10~55℃ |
| storage temperature | -40~85℃ |
| humidity | 5%~90% with no condensation |
| dimension | 30mm(H)×219mm(W)×119mm(D) |
