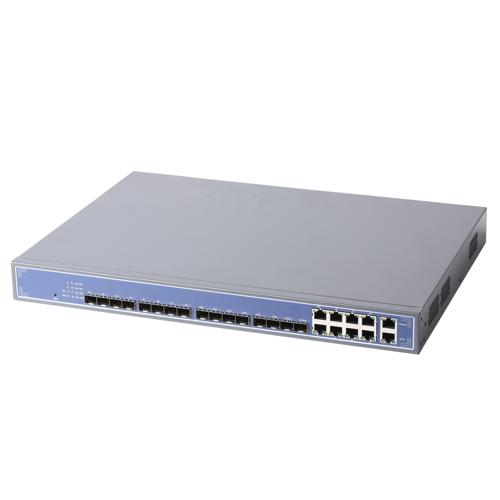

Fttx Olt 8 pon port Gpon Fiber Optic Equipment 8 / 16 port gpon olt Supply fttx onu
Short Description:
| PON standard. | GPON ITU-T G.984.x |
| PON interface | 8*GPON SFP Ports (Class C+), Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3～+7dBmTransmission distance: 20KM. Max splitting ratio1:128 |
| Upstream 2.488G, Downstream 1.244G | |
| Wavelength | Tx1310nm, Rx 1490nm |
| Uplink | 4*copper Ethernet ports 10/100/1000M auto-negotiation |
| 2*SFP(GE) | |
| 2* SFP+ (10GE) | |
| Layer 3 | Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
| Management Mode | SNMP、Telnet、CLI、WEB、SSH v1/v2 |
| Backplane | 128Gbps |
| MAC table | 16K |
| Operating condition | Operating temp: -5 ~ +55℃ |
| Storing condition | Storing temp: -40 ~ +85℃ |
| Humidity | 5~90%(non-condensing) |
| Power consumption | ≤45W |
| Dimension | 442mm×200mm×44mm（L×W×H） |
| Net weight | 3.1Kg |
