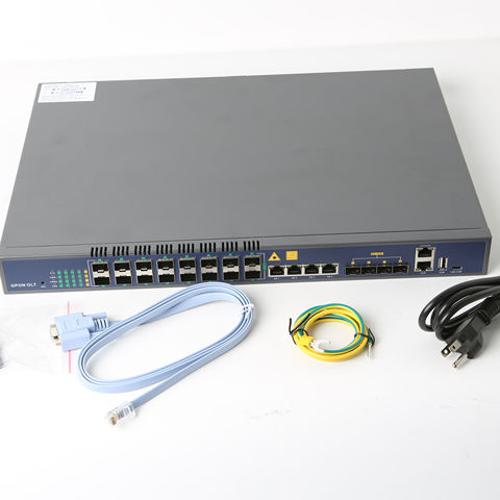

1U rack EPON OLT provides 16 EPON ports 12 uplink ports, 4 ports 10G uplinks dual power supplies without modules
Short Description:
| Items | Specifications |
| PON standard | EPON IEEE802.3ah |
| PON interface | 16*EPON SFP Ports (PX20+), Receiving sensitivity: ≤-30dBm(Saturation Optical -6dBm). Power,Transmitting optical power: +2～+7dBmTransmissiondistance: 20KM. Max splitting ratio1:64 |
| Upstream 1.25G Downstream 1.25G | |
| Wavelength | Tx1310nm, Rx 1490nm |
| Uplink | 4*copper ethernet ports 10/100/1000M auto-negotiation |
| 4*SFP(GE) | |
| 4*SFP+ (10GE) | |
| Layer 3 | Support static route、dynamic route RIP v1/v2 and OSPF |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
| Management Mode | SNMP、Telnet、CLI 、WEB、SSH v1/v2 |
| Backplane | 128Gbps |
| MAC table | 16K |
| Operating condition | Operating temp: -5℃ ~ +55℃ |
| Storing condition | Storing temp: -40℃ ~ +85℃ |
| Humidity | 5~90%(non-condensing) |
| Power consumption | ≤95W |
| Dimension | 442mm×320mm×44mm（L×W×H） |
| Net weight | 6.5Kg |
