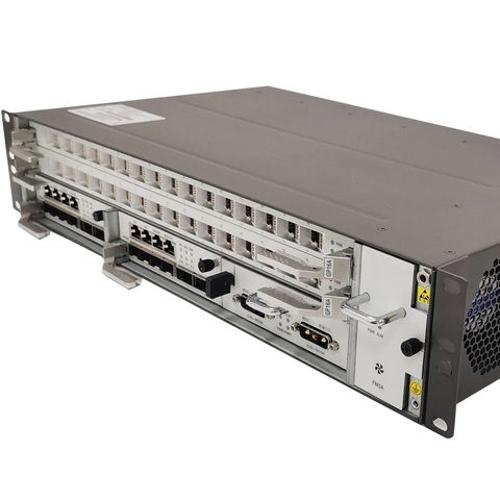

HA7316XGS-N chassis-type XG(S)PON/GPON OLT supports GPON/XG-PON/XGS-PON mixed insertion
Short Description:
| Attribute | HA7316XGS-N OLT |
| VLAN | Support 4K VLAN 802.1QSupport VLAN based on port, MAC and protocolSupport dual-Tag VLAN function, port-based static QinQ and flexible QinQ functions |
| MAC | Support 128K MAC address entriesSupport static MAC address settingSupport black hole MAC address filtering functionSupport port MAC address limit |
| PON | Splitting ratio: 1:128 (GPON, XG-PON, XGS-PON)Support B+/C+/C++ GPON optical moduleSupport N1/N2/E2 XG-PON or XGS-PON optical moduleSupport N1/B+, N2/C+, E2/D Combo optical modulesSN / SN + Password ONU authenticationSupport FECONU optical power monitoringRogue ONU detection |
| Layer 2 Function | Support STP/RSTP/MSTPSupport ERPS Ethernet ring network protection protocolSupport Loopback-detection port loopback detection |
| Port Control | Support bi-directional bandwidth controlSupport port storm suppressionSupport 9K Jumbo super long frame forwarding |
| Port Aggregation | Support static link aggregationSupport dynamic LACPEach aggregation group supports a maximum of 8 ports |
| Mirroring | Support mirror image |
| ACL | Support standard and extended ACLSupport time range (Time Range) ACL policyProvide flow classification and flow definition based on IP packet header informationsuch as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
| QoS | Support flow speed limit function based on custom business flowSupports packet mirroring and packet redirection based on custom service flowsSupport priority marking based on custom service flow, support 802.1P, DSCP priority Remark capabilitySupport port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR |
| Management Port | Console port, debugging network port |
| Standard | Conform to ITU-TG.984/T G.987/G.988 standard |
| Power Consumption | 280W |
| Safety | Support user hierarchical management and password protectionSupport IEEE 802.1X authentication/centralized MAC address authentication Support Radius&TACACS+ authenticationSupport MAC address learning number limit, support black hole MAC function Support SSH 2.0, providing a secure encrypted channel for user loginSupport SNMP v3 encrypted managementSupport port isolation, hardware isolation of packets between portsSupport broadcast packet rate suppressionSupport IP Source Guard to automatically create IP+MAC+port+VLAN binding table, and support manual binding table itemsSupport DHCP Option82 and PPPoE+Support ARP flood attack automatic suppression and ARP spoofing protectionSupport the prevention of various DOS attacks and virus attacks against the CPU on the control layer |
| Layer 3 Function | Support ARP learning and agingSupport for creating VLAN Layer 3 interfaces and configuring static IPv4/IPv6 addressesSupport static route configurationSupport RIP/OSPF protocol functionSupport VRRP protocol function |
| System Management | Support Console/Telnet/SSH2.0 command line configurationSupport WEB browser configuration managementSupport FTP, TFTP file upload and download managementSupport SNMP V1/V2/V3Support RMONSupport SNTP clockSupport system work logSupport LLDP Neighbor Discovery ProtocolSupport 802.3ah Ethernet OAMSupport RFC 3164 Syslog functionSupport Ping and Traceroute |
