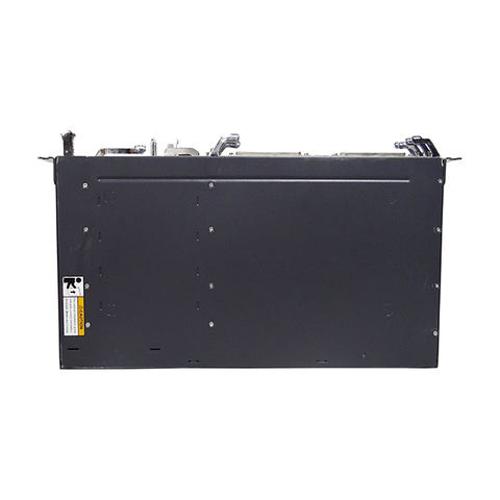

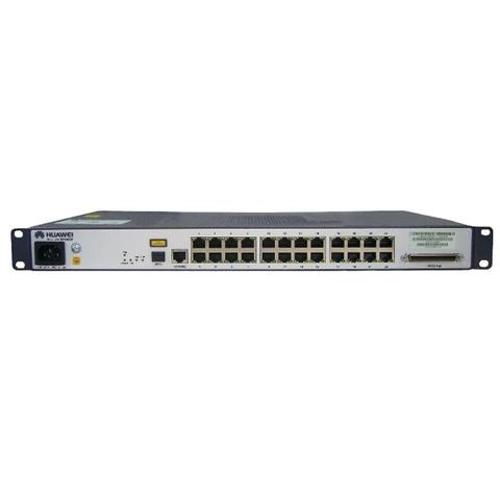

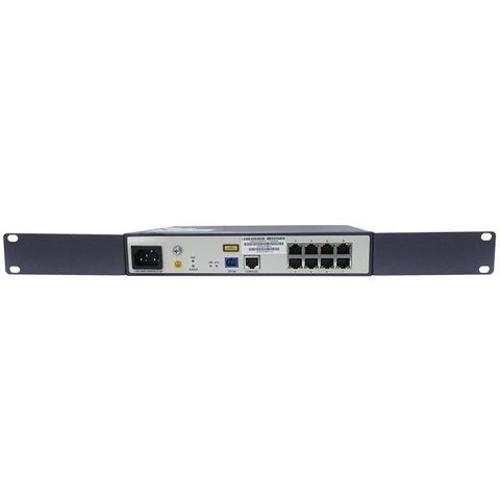

Huawei fiber optic MA5620 8 ports gpon onu
Short Description:
| Dimensions (H×W×D) | 43.6 mm × 442 mm × 220 mm |
| Network-side port | Each of them provides two uplink ports that use the SFP optical modules and automatically adapt to GPON and GE modes. The two uplink ports can be configured as follows:• 2 × GPON• 2 × GE (optical)• 1 × GE (optical) + 1×GPON |
| User-side port | • 24 × FE + 24 × POTS• 16 × FE + 16 × POTS• 8 × FE + 8 × POTS |
| Operating temperature | -40°C to +55°C; startup at -25°C |
| Humidity | 5% to 95% (non-condensing) |
| Heat Dissipation mode | Not providing fans; passive cooling |
| Lightning Protection capability | LAN:6 KV;POTS:4 KV |
| Power supply | AC: 220 V/110 V |
| Weight | 24 ports: 2.3 kg16 ports: 2.29 kg8 ports: 2.28 kg |
