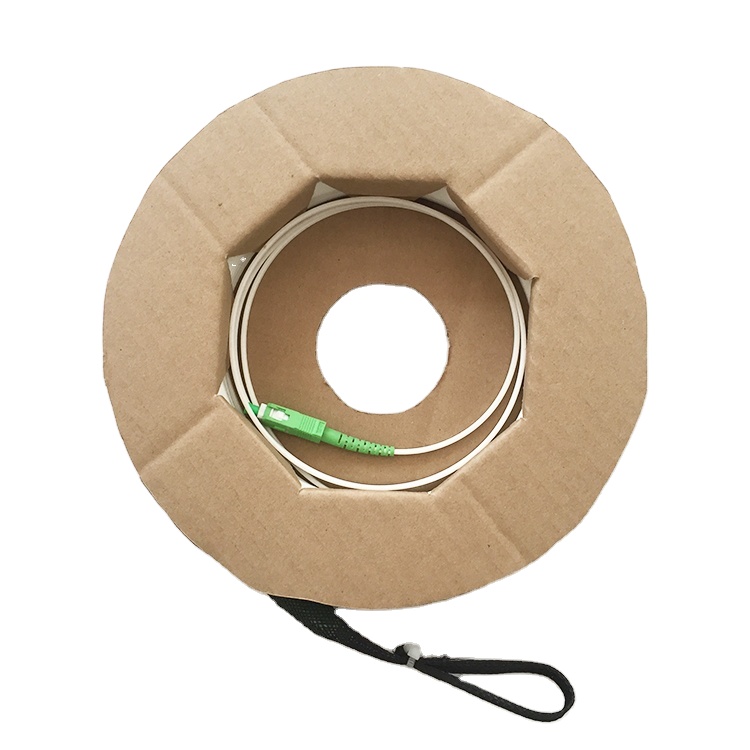

Cardboard Reel Type Packing SC APC Optic Fiber Patch Cord FTTH Drop Cable Assemblies with Pulling Eye
Short Description:
NO | |
Item | Specifications |
1 | |
Cladding Diameter (μm) | 125±0.7 |
2 | |
Cladding non-circularity (%) | ≤0.7 |
3 | |
Core-cladding concentricity error (μm) | ≤0.5 |
4 | |
Mode field Diameter @1310 (μm) | (8.6~9.5)±0.4 |
5 | |
Cladding -coating concentricity error (μm) | ≤12.0 |
6 | |
Coating Diameter(μm) | 245±0.5 |
7 | |
Fiber Cutoff Wavelength (nm) | λccf ≤1260 |
8 | |
Attenuation(max.) (dB/km) | |
1310nm | ≤0.4 |
1550nm | ≤0.3 |
9 | |
Bend Loss (dB) | |
Bend Radius | |
10 | 15 |
Bend Turns | |
1 | 10 |
1550nm | |
≤0.75 | ≤0.25 |
1625nm | |
≤1.5 | ≤1.0 |
