| Model No. |

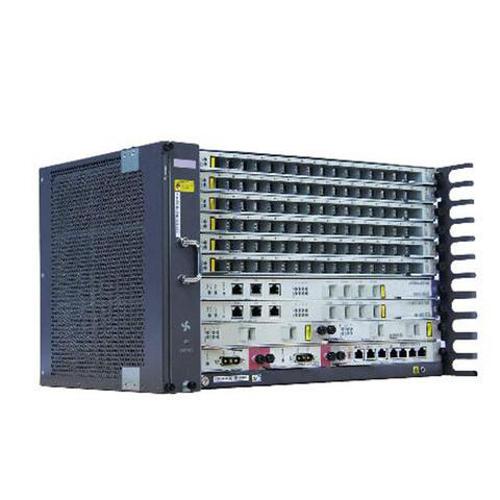

| MA5680T |
MA5683T |
| Dimension: |
| 490*275.8*447.2mm |
442*283.2*263mm |
|
Operating
Environment
|
|
Temperature:
-25℃~+55℃
Humidity:
5%~95%
(non-condensing)
|
Temperature:
-40℃~+65℃
Humidity:
5%~95%
(non-condensing)
|
|
Power Supply
Parameters
|
|
-48V DC input
Supports dual power
protection
Working Voltage range \-38.4V~-72V
|
-48V DC input
Supports dual
power protection
Working Voltage range\ -38.4V~-72V
|
|
Backplane
Exchange
capacity
|
| 3.2Tbit/s |
1.5Tbit/s |
|
Control Board
Exchange \Capacity
|
| 1920 Gbit/s |
960Gbit/s |
|
Access
Capacity
|
|
128*10G EPON
64*10G GPON
128*EPON
256*GPON
768*GE
|
48*10G EPON
24*10G GPON
48*EPON
96*GPON
288*GE
|
| Access Type |
Upstream interface: 10GE optical, GE optical/electricity
Business interface: EPON optical port, GPON optical port, 10G EPON optical
port, P2P FE optical port,
P2P GE optical port, Ethernet optical interface
|
|
System
Performance
|
Layer 2 / Layer 3 wire-speed forwardi
Support static router /RIP/OSPE.MPLS BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock Maximum support 1:256 splitting Maximum support 60KM logical distance
|
