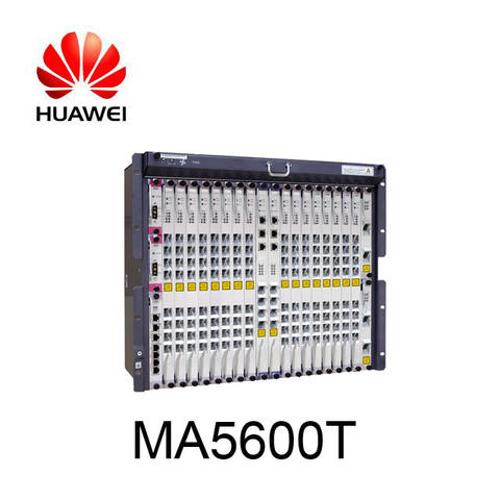

Huawei gpon olt MA5600T ADSL2+ MSAN DSLAM
Short Description:
| Specification | MA5600T |
| Dimensions (H x W x D) | 447 mm x 490 mm x 275.8 mm |
| Operating Environment | –25°C to +55°C5% RH to 95% RH |
| Power | –48V DC power inputDual-power supply protectionOperating voltage range of –38.4V to –72V |
| Switching Capacity — Backplane Bus | 3.2 Tbit/s |
| Switching Capacity — Control Board | 1,920 Gbit/s |
| Access Capacity | 64 x 10G GPON256 x GPON768 x GE |
| Port Type | Upstream ports: 10 GE optical and GE optical/electrical portsService ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port |
| System Performance | Layer 2/Layer 3 line-rate forwardingStatic route, RIP, OSPF, and MPLSClock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToDMaximum split ratio of 1:256Maximum logical distance between devices: 60 km |
