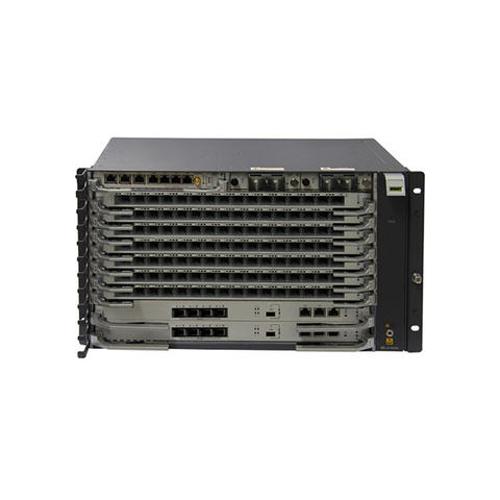

| Item |
| MA5800-X17 |
| MA5800-X15 |
| MA5800-X7 |
MA5800-X2 |
|
Dimensions
(W x D x H)
|
|
493 mm x 287
mm x 486 mm
|
|
442 mm x 287
mm x 486 mm
|
|
442 mm x 268.7
mm x 263.9 mm
|
442 mm x 268.7
mm x 88.1 mm
|
|
Maximum
Number
of Ports in a
Subrack
|
|
272 x GPON/
EPON
|
|
240 x GPON/
EPON
|
|
112 x GPON/
EPON
|
32 x GPON/EPON |
| 816 x GE/FE |
| 720 x GE/FE |
| 336 x GE/FE |
96 x GE/FE |
|
136 x 10G GPON/
10G EPON
|
|
120 x 10G GPON/
10G EPON
|
|
56 x 10G GPON/
10G EPON
|
16 x 10G GPON/
10G EPON
|
| 136 x 10G GE |
| 120 x 10G GE |
| 56 x 10G GE |
16 x 10G GE |
| 544 x E1 |
| 480 x E1 |
| 224 x E1 |
64 x E1 |
|
Switching
Capacity
of the System
|
| 7 Tbit/s |
480 Gbit/s |
|
Maximum
Number
of MAC
Addresses
|
262,143 |
|
Maximum
Number of
ARP/Routing
Entries
|
64K |
|
Ambient
Temperature
|
-40°C to 65°C |
|
Working
Voltage Range
|
| -38.4V DC to -72V DC |
DC power supply: |
|
Layer 2
Features
|
VLAN + MAC forwarding, SVLAN +
CVLAN forwarding, PPPoE+, and DHCP option82
|
|
Layer 3
Features
|
Static route, RIP/RIPng, OSPF/OSPFv3,
IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
|
|
MPLS &
PWE3
|
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel
protection switching, TDM/ETH PWE3, and PW protection switching
|
| IPv6 |
IPv4/IPv6 dual stack, IPv6 L2 and
L3 forwarding, and DHCPv6 relay
|
| Multicast |
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2,
MLD Proxy/Snooping, and VLAN-based IPTV multicast
|
| QoS |
Traffic classification, priority processing, trTCM-based traffic policing,
WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
|
|
System
Reliability
|
GPON type B/type C protection,
10G GPON type B protection,
BFD, ERPS (G.8032), MSTP,
intra-board and inter-board LAG, In-Service
Software Upgrade (ISSU)
of the control board, 2
control boards and 2 power
boards for redundancy protection,
in-service board fault detection and
rectification, and service overload control
|
