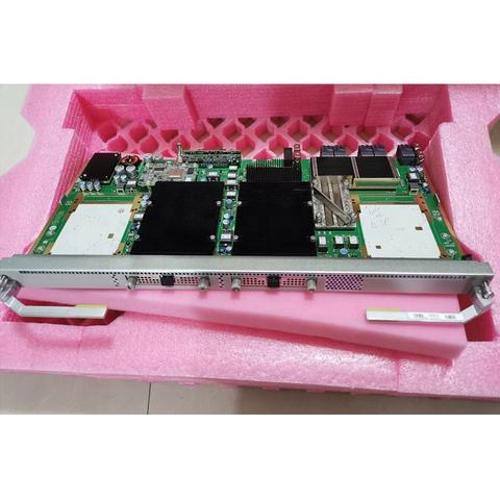

03032ARA TNU5N402C01 TNU5N402 OSN9800 OSN 9800 2*100G Line Board N402 for HUAWEI
Short Description:
| parameter | |
| MA5800-X17 | |
| MA5800-X15 | |
| MA5800-X7 | MA5800-X2 |
| Size (width x depth x height) | |
| 493x287x486mm | |
| 442x287x486 mm | |
| 442x268.7x263.9 mm | 442x268.7x88.1 mm |
| The maximum number of ports supported by a single frame | |
| 272 × GPON / EPON816 × GE / FE136 × 10G GPON / 10G EPON136 × 10G GE544 × E1 | |
| 240 × GPON / EPON720 × GE / FE120 × 10G GPON / 10G EPON120 × 10G GE480 × E1 | |
| 112 × GPON / EPON336 × GE / FE56 × 10G GPON / 10G EPON56 × 10G GE224 × E1 | 32 × GPON / EPON96 × GE / FE16 × 10G GPON / 10G EPON16 × 10G GE64 × E1 |
| MPU exchange capacity | |
| 7 Tbit / s | 480 Gbit / s |
| MAC addresses | 262143 |
| ARP / routing table entries | 64K |
| Operating temperature | -40 ℃ ~ + 65 ℃ (work)-25 ℃ ~ + 65 ℃ (restart)* 65 ℃ refer to operational block inlet temperature. |
| Operating Voltage | |
| -38.4 ~ -72 V DC power supply | DC power supply: -38.4V ~ -72VAC power supply: 100V ~ 240V |
| Layer 2 features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE +, DHCP option82 |
| Layer 3 features | Static routing, RIP, OSFP / OSPFv3, IS-IS, BGP / BGP4 +, ARP, DHCP relay, VRF |
| MPLS & PWE3 | LDP, RSVP-TE, MPLS OAM, tunnel protection switching, TDM / ETH PWE3, PW protection switching, MPLS BGP IP VPN |
| IPv6 | IPv4 and IPv6 dual stack, IPv6 Layer 2 and Layer 3 forwarding, DHCPv6 relay |
| Multicast | IGMPv2, IGMPv3, IGMP proxy with the listener, VLAN-based multicast IPTV |
| QoS | Traffic classification, prioritization, traffic policing trTCM based, HQoS, traffic shaping, WRED, PQ / WRR / PQ + WRR, ACL |
| System Reliability | GPON type B, type C protection;EPON type B, type D protection;XG-GPON and the 10G EPON type B protection;Between the plate and the inner plate LAG, MSTP;Master and upgrade service boards continued business. |
