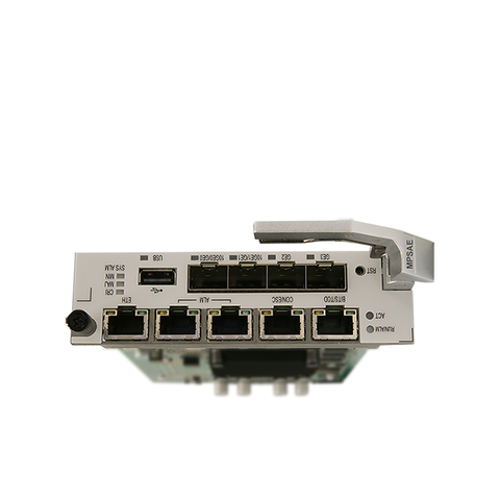

Main Control Board Main Processing Board H901MPSAE MPSAE with onu for HUAWEI EA5800 Series OLT
Short Description:
| Item | |
| EA5800-X17 | |
| EA5800-X15 | |
| EA5800-X7 | EA5800-X2 |
| Dimensions (W x D x H) | |
| 493 mm x 287 mm x 486 mm | |
| 442 mm x 287 mm x 486 mm | |
| 442 mm x 268.7 mm x 263.9 mm | 442 mm x 268.7 mm x 88.1 mm |
| Maximum Number of Ports in a Subrack | |
| · 272 x GPON· 816 x GE/FE· 136 x 10G GPON· 408 x 10G GE· 544 x E1 | |
| · 240 x GPON· 720 x GE/FE· 120 x 10G GPON· 360 x 10G GE· 480 x E1 | |
| · 112 x GPON· 336 x GE/FE· 56 x 10G GPON· 168 x 10G GE· 224 x E1 | · 32 x GPON· 96 x GE/FE· 16 x 10G GPON· 16 x 10G GE· 64 x E1 |
| Switching Capacity of the System | |
| 3.6 Tbit/s | |
| 480 Gbit/s | |
| Maximum Number of MAC Addresses | |
| 262,143 | |
| Maximum Number of ARP/Routing Entries | |
| 64K | |
| Ambient Temperature | |
| -40°C to 65°CNote: The EA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highesttemperature measured at the air intake vent | |
| Working Voltage Range | |
| -38.4V DC to -72V DC | |
| DC power supply: -38.4V to -72VAC power supply:100V to 240V | |
| Layer 2 Features | |
| VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 | |
| Layer 3 Features | |
| Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF | |
| MPLS & PWE3 | |
| MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching | |
| IPv6 | |
| IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay | |
| Multicast | |
| IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD proxy/snooping, and VLAN-based IPTV multicast | |
| QoS | |
| Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL | |
| System Reliability | |
| GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-ServiceSoftware Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service boardfault detection and rectification, and service overload control | |
