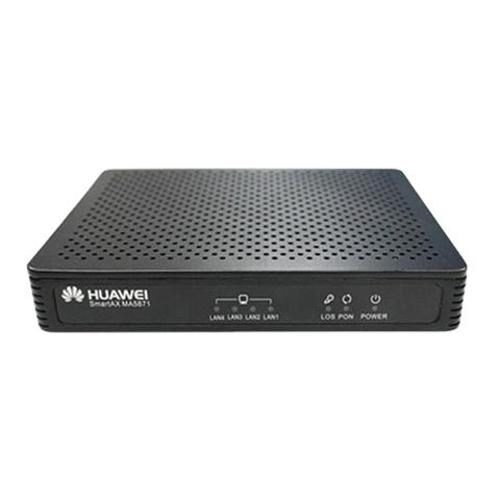

Huawei MA5871 Fiber Optic 10G GPON ONU
Short Description:
| Specifications | |
| MA5871 | |
| MA5878 | MA5818 |
| Dimensions (H x W x D) | |
| 27 mm x 160 mm x 115 mm | |
| 43.6 mm x 442 mm x 245 mm | 88.1 mm x 442 mm x 245 mm |
| Operating Environment | |
| 0°C to 40°C5% RH to 95% RH | |
| –40°C to 65°C5% RH to 95% RH | -40°C to 65°C5% RH to 95% RH |
| Power | |
| DC: 12V, 2A | |
| DC: -48V to -60VAC: 90V to 264V | AC: 90V to 264V DC: -38.4V to –72V |
| Network-side Ports | |
| 10G GPON/GPON Port/GE (optical) /GE (electric) Note: The upstream GE electric port and the user-side GE port is the same port | |
| One SFP optical port 10G PON or PON (auto-negotiation) Houses XS1C and supports 10G GPON (symmetric) | Two SFP optical port2 GE/2 x 10 GE1 GPON/1 XG-PON |
| User-side Ports | |
| 4 GE | |
| Fixed configurations: 8 x GE (electrical)3 service slots: 8 x GE (electrical) 16 x POTS 8 x POTS | 4 line cards forG.fast: 24 channels compatible with VDSL2 |
| Surge Protection | |
| Power port: 6 kVGE: 4 kV | |
| DC-powered port: Differential mode 2 kV; common mode 4 kVLAN port: 4 kV POTS port: 4 kV | Power port: 6 kVG.fast: 4 kV |
