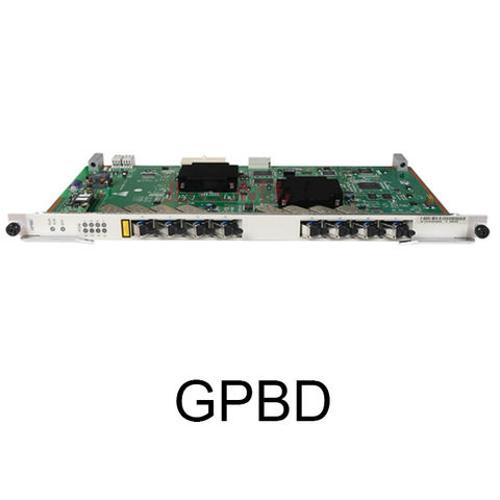

HUAWEI GPBD With Class B+ C+ C++ SFP for GPON OLT MA5608T
Short Description:
| Specifications | |
| MA5600T(ETSI) | |
| MA5600T(IEC) | |
| MA5603T | MA5608T |
| Dimensions (H x W x D) | |
| 490 mm x 275.8 mm x 447.2 mm | |
| 442 mm x 275.8 mm x 441.7 mm | |
| 442 mm x 283.2 mm x 263.9 mm | 442 mm x 244.5 mm x 88.1 mm |
| Operating Environment | |
| –25°C to 55°C 5% RH to 95% RH | |
| –40°C to 65°C 5% RH to 95% RH | |
| –40°C to 65°C 5% RH to 95% RH | |
| Power Supply | |
| Dual-power supply protection Operating voltage range of –38.4V to –72V | Dual-power supply protection DC power supply: -38.4V to -72V AC power supply: 100V to 240V |
| Switching Capacity — Backplane Bus | |
| 3.2 Tbit/s | |
| 1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO) | 720 Gbit/s |
| Access Capacity | |
| 1,024 x ADSL2+ 1,024 x VDSL2 512 x EFM SHDSL 256 x TDM SHDSL 1,024 x POTS 512 x ISDN BRA 64 x ISDN PRA 128 x 10G GPON 256 x GPON 768 x P2P FE 768 x P2P GE | |
| 896 x ADSL2+ 896 x VDSL2 448 x EFM SHDSL 224 x TDM SHDSL 896 x POTS 448 x ISDN BRA 56 x ISDN PRA 112 x 10G GPON 224 x GPON 672 x P2P FE 672 x P2P GE | |
| 384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE | 16 x 10G GPON 48 x GPON 96 x P2P FE 96 x P2P GE |
| Port Types | Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port |
| System Performance | Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km |
