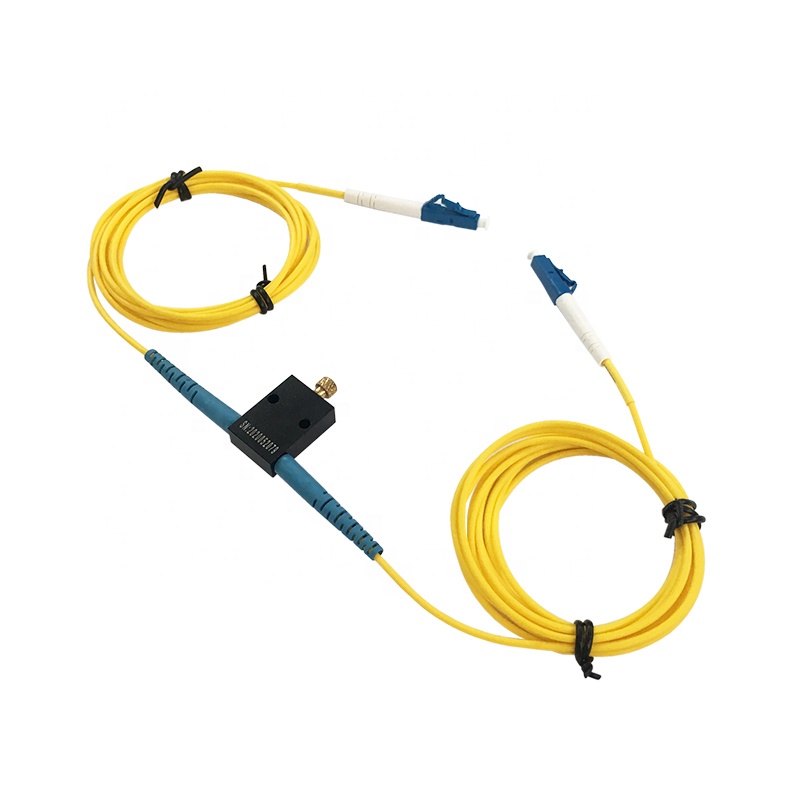

Low Original Loss In Line Lc Fiber Optic Connector Variable Optical Attenuator
Short Description:
| Operating Wavelength | |
| nm | |
| 1310 or 1550 or 1490 or 1585 | |
| Bandwidth | |
| nm | |
| ±40 | |
| Insertion Loss | |
| dB | |
| Typ:0.8 Max:0.9 | |
| Attenuation range | |
| dB | |
| 0.8~60 | |
| PDL | |
| dB | |
| ≤0.1 | |
| Return Loss | |
| dB | |
| ≥60 | |
| Attenuation Precision | |
| dB | |
| ≤0.02 | |
| Fiber Type | |
| SMF-28e | |
| Connector Type | |
| FC SC LC customization is available. | |
| Fiber Length | |
| m | |
| ≥1.0 | |
| Transmission Power | |
| mw | |
| ≤500 | |
| Operation Temperature | |
| ℃ | |
| -20~+70 | |
| Storage Temperature | |
| ℃ | |
| -40~+85 | |
| Dimension | |
| mm | |
| 26x16x8 |
