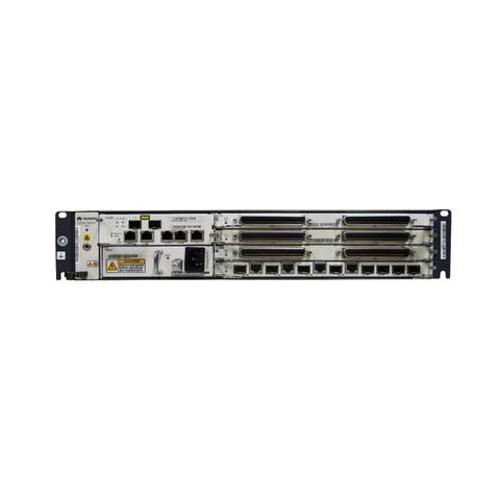

Huawei dslam MA5616 uplink interface board GP1A
Short Description:
| PON: PON port | |
| Functions as the port for PON upstream transmission. | |
| Front panel | |
| - | Use the single-mode optical fiber to connect the port to the optical port of the upstream device. |
| 0: 100 Mbit/s optical port | |
| Functions as the port for the IP access service. | |
| Front panel | |
| - | Use the single-mode/multi-mode optical fiber to connect the port to the optical port of the upstream device. |
| 1: 100 Mbit/s optical port | |
| Functions as the port for the IP access service. | |
| Front panel | |
| - | Use the single-mode/multi-mode optical fiber to connect the port to the optical port of the upstream device. |
| ETH1: GE port | |
| Functions as the ports for the IP access service. | |
| Front panel | |
| - | Use the CAT-5 network cable to connect the port to the Ethernet port of the subscriber-side device. |
| ETH0: FE port | |
| Functions as the ports for the IP access service. | |
| Front panel | |
| - | Use the CAT-5 network cable to connect the port to the Ethernet port of the subscriber-side device. |
| Four E1 ports | |
| Function as the ports for the E1 access service. | |
| E1TB (rear-access shelf) | |
| 75/120 ohms | Use the trunk cable to connect the port to the E1 transmission device. |
| SLTF (front-access shelf) | |
| 75/120 ohms | Use the trunk cable to connect the port to the E1 transmission device. |
