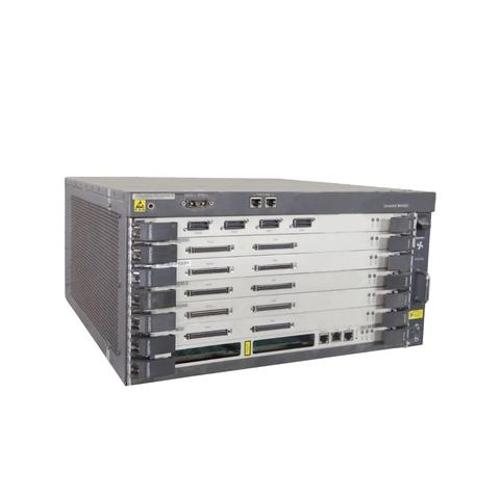

HW MA5603T Medium GPON OLT
Short Description:
| Board Type | |
| Silk Screen | |
| Board Mapping | |
| Full Name | Slot |
| SCUB | |
| SCUN | |
| SCUF | SCUH |
| Control board | |
| SCUB | |
| – | |
| – | |
| – | |
| – | |
| Super Control Unit Board | 6 and 7 |
| SCUN | |
| – | |
| – | |
| – | – |
| SCUF | |
| – | |
| – | |
| – | – |
| SCUH | |
| – | |
| – | |
| – | – |
| Service board | |
| ADKM | |
| √ | |
| √ | |
| × | |
| × | |
| 64-port ADSL2+ Service Board | 0-5 |
| ASPB | |
| √ | |
| √ | |
| √ | |
| × | 64-port VOIP Subscriber Board |
| ADPD | |
| √ | |
| √ | |
| √ | |
| × | 64-port ADSL2+ over POTS Service Board |
| ADPE | |
| √ | |
| √ | |
| × | |
| × | 64-port ADSL2+ over POTS Service Board |
| ADPM | |
| √ | |
| √ | |
| √ | |
| × | 64-port ADSL2+ over POTS Service Board |
| ADQD | |
| √ | |
| √ | |
| √ | |
| × | 64-port ADSL2+ over ISDN Service Board |
| DSRD | |
| √ | |
| √ | |
| √ | |
| × | 32-port ISDN Digital Subscriber Board |
| CAME | |
| √ | |
| √ | |
| √ | |
| × | 48-port ADSL2+&POTS Combo Board |
| CSPA | |
| × | |
| √ | |
| × | |
| √ | CESoP Service Process Board |
| CVME | |
| √ | |
| √ | |
| √ | |
| × | 48-port VDSL2&POTS Combo Board |
| H802GPBD | |
| × | |
| √ | |
| × | |
| √ | 8-port GPON OLT Interface Board |
| H805GPBD | |
| × | |
| √ | |
| × | |
| √ | 8-port GPON OLT Interface Board |
| GPFD | |
| × | |
| √ | |
| × | |
| √ | 16-port GPON OLT Interface Board |
| OPFA | |
| √ | |
| √ | |
| √ | |
| √ | FE P2P Optical Interface Board |
| OPGD | |
| × | |
| √ | |
| × | |
| √ | 48-port GE/FE Optical Interface Board |
| VCMM | |
| √ | |
| √ | |
| √ | |
| × | 48-port VDSL2 over POTS Service Board |
| VDRD | |
| √ | |
| √ | |
| √ | |
| × | 24-Port VDSL2 over POTS Service Board |
| VDMF | |
| √ | |
| √ | |
| √ | |
| × | 48-port VDSL2 over POTS Service Board |
| VDPD | |
| √ | |
| √ | |
| √ | |
| × | 64-port VDSL2 over POTS Service Board |
| VDPE | |
| √ | |
| √ | |
| √ | |
| × | 64-port VDSL2 over POTS Service Board |
| VDPM | |
| √ | |
| √ | |
| √ | |
| × | 64-port VDSL2 over POTS Service Board |
| VDQM | |
| √ | |
| √ | |
| √ | |
| × | 64-port VDSL2 over ISDN Service Board |
| VDNF | |
| √ | |
| √ | |
| √ | |
| × | 48-port VDSL2 over ISDN Service Board |
| VDJM | |
| √ | |
| √ | |
| × | |
| × | 48-port VDSL2 over ISDN Service Board |
| SHLM | |
| √ | |
| √ | |
| √ | |
| × | 16-port SHDSL.bis Service Board |
| H802EDTB | |
| √ | |
| √ | |
| × | |
| √ | 16 port SHDSL and 16 port E1 Service Board |
| ETHB | |
| √ | |
| √ | |
| √ | |
| √ | Ethernet Service Access Board |
| SPUA | |
| × | |
| √ | |
| × | |
| √ | Service Process Board |
| SPUB | |
| √ | |
| √ | |
| √ | |
| √ | MPLS service Process Unit Board |
| TOPA | |
| × | |
| √ | |
| × | |
| √ | TDM Traffic over PSN Board |
| XGBC | |
| × | |
| √ | |
| × | |
| √ | 4-port 10G GPON OLT Interface Board |
| VPEA | |
| √ | |
| √ | |
| × | |
| × | |
| 288-Channels(48*6) Vector Centralized Processing Board | 12 |
| Clock board | |
| CITD | |
| √ | |
| √ | |
| √ | |
| √ | |
| Combo Interface Transfer Board | 12 |
| Upstream interface board | |
| GICD | |
| √ | |
| × | |
| √ | |
| √ | |
| 4-port GE Optical Interface Card | 8 and 9 |
| GICE | |
| √ | |
| × | |
| √ | |
| √ | 4-port GE/FE Electrical Interface Card |
| GICF | |
| × | |
| √ | |
| × | |
| √ | 2-port GE Optical Interface Card |
| GICG | |
| × | |
| √ | |
| × | |
| √ | 2-port GE Electrical Interface Card |
| GICK | |
| × | |
| √ | |
| √ | |
| √ | 2-port GE Optical Interface Card |
| GSCA | |
| √ | |
| × | |
| √ | |
| × | GE Synchronous Ethernet Interface Card |
| P2CA | |
| √ | |
| √ | |
| × | |
| × | 2-port xPON Optical Interface Card |
| X2CS | |
| × | |
| √ | |
| √ | |
| √ | 2-port 10GE Uplink Interface Card |
| Power interface board | |
| PRTE | |
| √ | |
| √ | |
| √ | |
| √ | |
| Connect Power Board | 10 and 11 |
