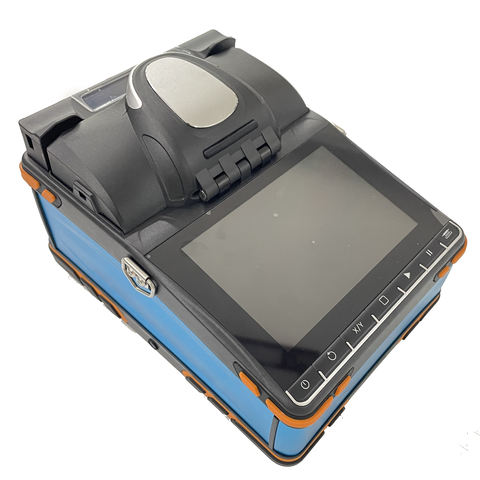

Automatic manual 6 Motor With VFL OPM Fusion Splicing Machine Optical Fiber optic Fusion Splicer Machine
Short Description:
| Applicable fber | SMF (G.652), MMF (G.651),DSF(G.653),NZDSF(G.655) |
| Fiber diameter | Cladding: 80-150um; Coating:0.1-3mm |
| Splice loss | 0.02dB(SMF),0.01dB(MMF),0.04dB(DSF/NZDSF) are measured by ITU-I shear method |
| Alignment method | Core, cladding |
| Welding time | 8s (SMF typical value) |
| Splicing method | Auto/Manual |
| Focus mode | Six-motor auto focus |
| Pull test | 1.96-2.25N |
| lmage display | Capacitive 5.5inch touch LCD screen |
| Magnification | 300(X/Y),150(X/Y synchronization) |
| Weld record | 1000 groups (K5Ssupports cloud storage) |
| Typical heating time | 18s |
| Heating time | 0-60s |
| Heat shrinkable sleeve | 20mm、30mm、40mm、50mm、60mm |
| OPM | Range: -70~+3 dBm /Wavelength: 850~1625nmUncertainty: ± 0.5% |
| Red light (VFL) | ≥10mW |
| Operation interface | GUI graphical user operation interface |
