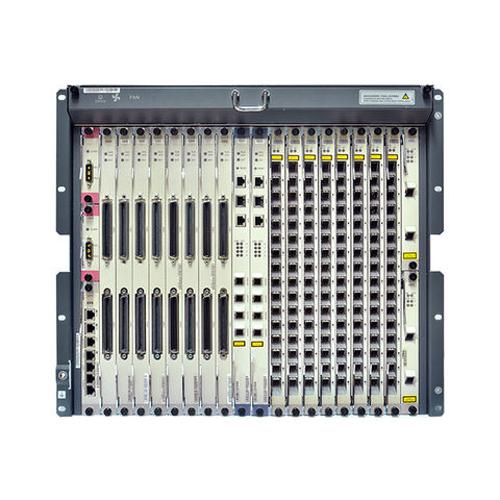

MA5600T MA5603T SCUN SCUB Control Unit
Short Description:
| LAN switch | 24 x GE |
| Switching capacity | 48 Gbit/s |
| Bandwidth per slot | 1 Gbit/s |
| MAC address table | 16384 |
| Access user | 1024 |
| Multicast user | 2048 |
| Configurable multicast channel | 4096 |
| Concurrent multicast channel | 1024 |
| IPv4 routing table | 5120 |
| IPv6 routing table | 5120 |
| Service port | 16384 |
| ARP table | 8192 |
| ACL rule | 1024 |
| Maximum Frame Size | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| VRF (L3 VPN) | Not supported |
| Operating temperature | -40°C to +65°C |
| Power consumption | Static: 18.8 W |
