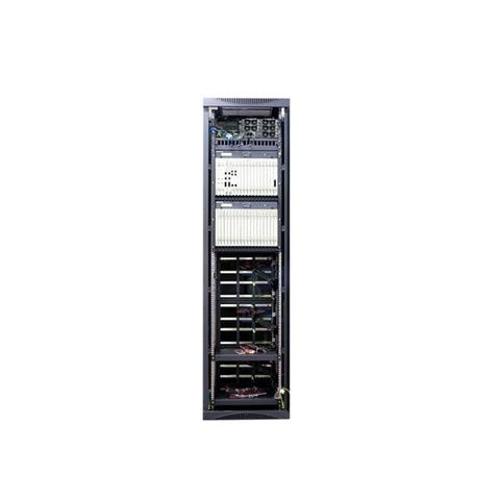

Huawei PVMD PVMB IPMD HONET UA5000
Short Description:
| PVM | |
| Packet voice processing board | The PVM board is also called the narrowband control board of the master shelf. The PVM board supports the following functions: Controls the narrowband service boards. Converts the TDM voice traffic into IP packets. Supports the H.248/SIP protocol. Provides one FE port for transmitting the IP-based voice service. Supports the V5 interface to provide the V5 voice service. The PVMB board can provide four E1 ports. The PVMD backplane provides four E1 ports, and the panel of the PVMD board provides one GE optical port and one FE optical/electrical port. |
| RSU8/RSU4 | |
| Remote subscriber processing card | Controls the narrowband line cards in the remote subscriber frame. Implements the subtending of narrowband services with the UA5000 master frame. Provides upstream E1 ports for the narrowband services. NOTE: RSU8/RSU4 is no longer manufactured. |
| A32 | |
| Analog service board | The A32 board provides 32 POTS ports. |
| A64 | |
| Analog service board | The A64 board provides 64 POTS ports. |
| CDI | |
| Direct-dialing-in subscriber interface board | The CDI board provides 16 DDI ports, through which the analog service is transparently transmitted. |
| COPA | |
| E1 emulation service board | The COPA board provides 16 E1 ports for converting the TDM signals into CESoP Ethernet packets. |
| DDU2 | |
| Private-line service board | The DDU2 board provides two channels of synchronous 64 kbit/s ports. |
| DSLD | |
| Digital service board | The DSLD board provides 16 ISDN BRI ports. |
| EDTB | |
| E1 trunk board | The EDTB board provides 16 E1 trunk ports. |
| SDLE | |
| TDM G.SHDSL board | The SDLE board provides eight TDM G.SHDSL ports and eight E1 ports. |
| SRX | |
| Private-line service board | The SRX board provides five V.24 synchronous sub-rate ports or three V.24 asynchronous sub-rate ports. |
| VFB | |
| Audio frequency interface board | The VFB board provides 16 2-wire audio frequency ports or eight 4-wire audio frequency ports. |
| TSSB | |
| Subscriber test board | The TSSB board is used to test the lines of the service board. |
| ESC | |
| Environment monitoring board | The ESC monitors the power supply, temperature, humidity, door status, fan, battery, and other analog and digital parameters, and also reports the monitored information to the control board through the serial port. |
| PWX | |
| Secondary power supply board | One PWX board occupies one slot. One master shelf can be equipped with two PWX boards. The PWX board supports inter-board and inter-shelf load-sharing and mutual aid function. |
| VMS | |
| Message LED analog service board | The VMS provides 16 analog service ports. |
