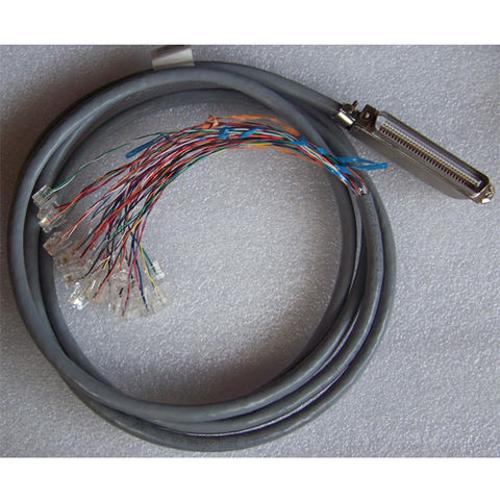

CADSL6403 64 Channel ADSL Subscriber Cable for Huawei DSLAM MA5616
Short Description:
| Parameter | Description |
| Connector | Delander 64-pin |
| Type | Symmetrical twisted pair |
| Color | PANTONE 430 U (PANTONE refers to international standard color cards and 430 U is close to grey) |
| Characteristic impedance | 100.0 ohms |
| Wire diameter of the inner conductor | 0.40 mm (26 AWG) |
| Wire | 128-wire |
| Breakdown voltage | 1000.0 V |
| DC resistance of the inner conductor | 145.0 ohms/km |
| Frequency range | Default |
| Frequency attenuation | ≤ 2.95 dB/100 m (1 MHz) |
| Capacitance | ≤ 56 nF/km (1 kHz) |
