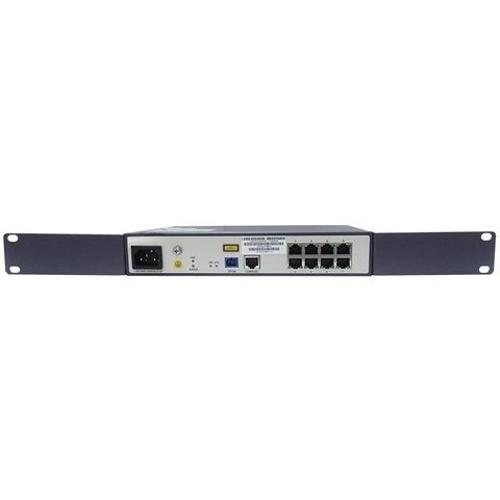

GPON EPON ONU MA5626 POE
Short Description:
| Upstream port | |
| GPON port | The GPON optical port uses the single-mode optical transceiver, and supports bidirectional data transmission over one optical fiber. Complies with the series of ITU-T G.984 Recommendation, and supports a data transmission rate of 2.488 Gbit/s in the downstream direction and 1.244 Gbit/s in the upstream direction. The type of the optical connector is SC/PC(UPC). |
| GE port | Provides the GE optical port, implementing remote subtending and service upstream transmission. The GE optical port supports a data transmission rate of 1 Gbit/s. The type of the optical connector is LC/PC. |
| Service ports | |
| FE electrical port | Provides Ethernet adaptive access rates of 10 Mbit/s and 100 Mbit/s. |
| GE electrical port | Provides Ethernet adaptive access rates of 100 Mbit/s and 1 Gbit/s. |
| Clock/Time port | Supports 2.048 MHz clock output and time output. |
| Maintenance port | |
| Maintenance serial port | The MA5626 provides one serial port, which can function as a maintenance serial port and maintenance network port at the same time after a console-Ethernet integrated cable is connected to it. During the BIOS loading process, this serial port can only be used as a maintenance serial port. In this case, the first user port on the device can be used as the maintenance network port. When the device is running, the functions of this port are as follows: It can be used as a maintenance serial port. In this case, you can configure a user port on the device to manage the device locally. It can function as a maintenance serial port and maintenance network port at the same time after a console-Ethernet integrated cable is connected to it. |
| Environment monitoring port | |
| Network cabinet fan port | Provides power for the fans or monitors the fans in the network cabinet. |
| Environment monitoring parameter port (RS-232 port) | Can be connected to Boolean value sensor for monitoring the digital parameter. The MA5620/MA5626 does not provide a special environment monitoring parameter port. The maintenance serial port can be configured as the environment monitoring parameter port. |
| Network cabinet fan port | Provides power for the fans or monitors the fans in the S50/S100 network cabinet. |
