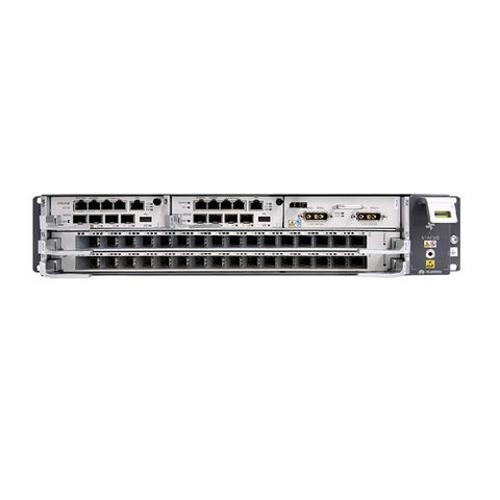

smart NG-OLT MA5800 series MA5800-X2 GPON OLT
Short Description:
| Item | |
| MA5800-X17 | |
| MA5800-X15 | |
| MA5800-X7 | MA5800-X2 |
| Dimensions (W x D x H) | |
| 493 mm x 287 mm x 486 mm | |
| 442 mm x 287 mm x 486 mm | |
| 442 mm x 268.7 mm x 263.9 mm | 442 mm x 268.7 mm x 88.1 mm |
| Maximum Number of Ports in a Subrack | |
| 272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1 | |
| 240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1 | |
| 112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 | 32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1 |
| Switching Capacity of the System | |
| 7 Tbit/s | 480 Gbit/s |
| Maximum Number of MAC Addresses | 262,143 |
| Maximum Number of ARP/Routing Entries | 64K |
| Ambient Temperature | -40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
| Working Voltage Range | |
| -38.4V DC to -72V DC | DC power supply: -38.4V to -72V AC power supply: 100V to 240V |
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 |
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF |
| MPLS ; PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching |
| IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay |
| Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast |
| QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL |
| System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control |
