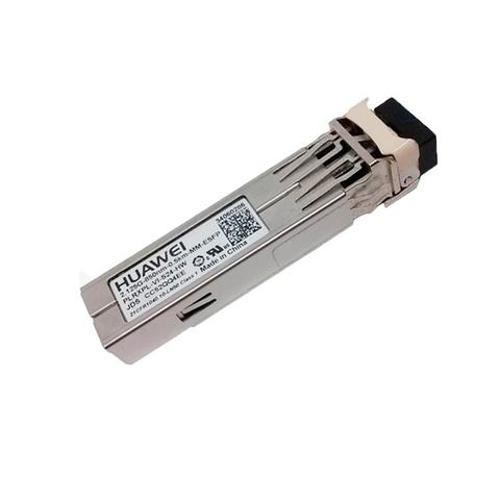

HUAWEI eSFP Fiber Optical Module eSFP-GE-SX-MM850
Short Description:
| Transceiver form factor | eSFP |
| Transmission speed | GE |
| Center wavelength (nm) | 850 |
| Standard compliance | 1000base-SX |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km |
| Transmit power (dBm) | -9.5 to -2.5 |
| Maximum receiver sensitivity (dBm) | -17.0 |
| Overload power (dBm) | 0 |
| Extinction ratio (dB) | 9 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Part number | 02315204 |
