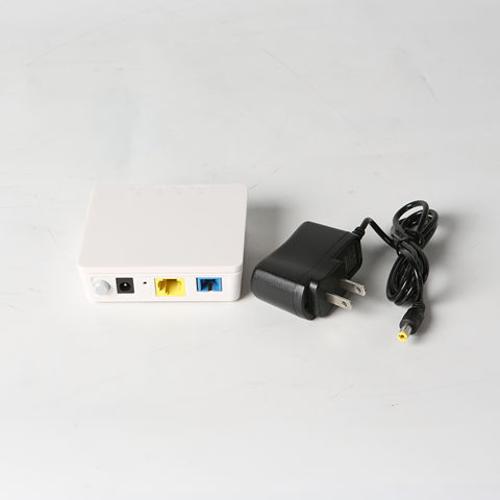

fiber optic equipment 1port onu epon XPON onu compatible ftth olt
Short Description:
| Technical items | Description |
| Main chip | RTL |
| Uplink PON interface | 1 GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps |
| Downlink LAN interface | 1* 10/100/1000Mbps Auto adaptive Ethernet interface, Full Duplex/Half Duplex, RJ45 connector |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Split ratio | 1:64 |
| Gateway function | Router mode supports PPPoE/DHCP/ static IPWAN support Route rand Bridge modeWAN support Internet,VoIP,IPTVLAN supports DHCP and static IPSupport NAT and NAPT |
| DC power supply | +12Vdc, 0.5A, external AC-DC adaptor |
| Power consumption | ≤3W |
| Operating condition | Operating temp: -5~+45℃ Operating humidity:10~90%(non-condensed) |
| Storing condition | Storing temp: -40~+70℃ Storing humidity:10~90%(non-condensed) |
| Dimension | 105mm(length) * 78mm(width) * 24mm(height) |
| Net weight | 0.2Kg |
