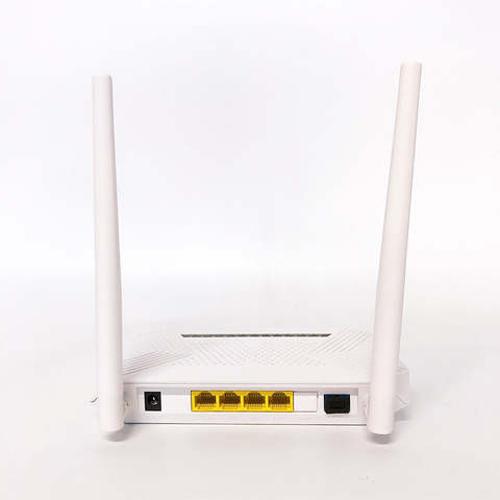

GEPON EPON ONU/HGU 1GE+3FE+WIFI

Short Description:


Product Detail

Parameter Specification
PON Interface 1 G/EPON port(EPON PX20+ and GPON Class B+)
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/PC Connector
LAN Interface 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED 11 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、Worn、 Normal(CATV)
Push-Button 3,For Function of Reset, WLAN, WPS
Operating Condition Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing Condition Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply DC 12V/1A
Power Consumption ≤6W
Dimension 155mm×92mm×34mm(L×W×H)
Net Weight 0.24Kg

xxxxxxx.
