Specification
|
|

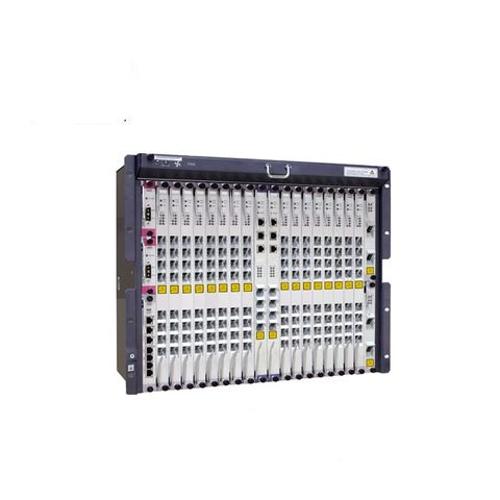

MA5600T
|
|
MA5603T
|
MA5608T
|
|
Dimensions (H x W x D)
|
|
447 mm x 490 mm x 275.8 mm
|
|
263 mm x 442 mm x 283.2 mm
|
88 mm x 442 mm x 233.5 mm
|
|
Operating Environment
|
|
–25°C to +55°C
5% RH to 95% RH
|
|
–40°C to +65°C
5% RH to 95% RH
|
|
–40°C to +65°C
5% RH to 95% RH
|
|
Power
|
|
–48V DC power input
Dual-power supply protection
Operating voltage range of –38.4V to –72V
|
|
–48V DC power input
Dual-power supply protection
Operating voltage range of –38.4V to –72V
|
|
–48V DC power input
Dual-power supply protection
Operating voltage range of –38.4V to –72V
|
|
Switching Capacity — Backplane Bus
|
|
3.2 Tbit/s
|
|
1.5 Tbit/s
|
720 Gbit/s
|
|
Switching Capacity — Control Board
|
|
1,920 Gbit/s
|
|
960 Gbit/s
|
512 Gbit/s
|
|
Access Capacity
|
|
64 x 10G GPON
256 x GPON
768 x GE
|
|
24 x 10G GPON
96 x GPON
288 x GE
|
8 x 10G GPON
32 x GPON
96 x GE
|
|
Port Type
|
Upstream ports: 10 GE optical and GE optical/electrical ports
Service ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port
|
|
System Performance
|
Layer 2/Layer 3 line-rate forwarding
Static route, RIP, OSPF, and MPLS
Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD
Maximum split ratio of 1:256
Maximum logical distance between devices: 60 km
|
