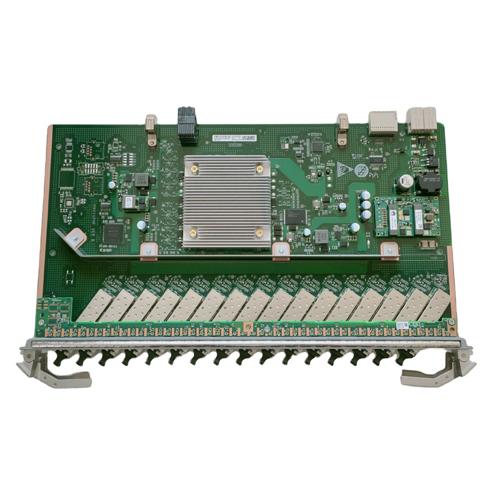

FTTH 4 port 8 port 16ports ma5608t ma5683t epon gpon olt service card GPUF for huawei ma5800-x2 ma5800-x7 ma5800-x15 ma5800-x17
Short Description:
| GPON Port | 16-GPON Port |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | |
| Tx: 1490 nm, Rx: 1310 nm | |
| Port Rate | |
| Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s | |
| Minimun Output Optical Power | |
| C+ Module : 3.00 dBm | |
| Maximum Output Optical Power | |
| C+ Module : 7.00 dBm | |
| Maximum Receiver Sensitivity | |
| C+ Module : -32.00 dBm | |
| Optical Connector Type | |
| SC | |
| Optical Fiber Type | |
| Single-mode | |
| Overload Optical Power | |
| C+ Module : -12.0 dBm | |
| Extinction Ratio | |
| 8.2 dB | |
| Device Specifications | |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | |
| Static: 25W; Maximum:50W | |
| Maximum Frame Size | |
| 2052 bytes | |
| Operating temperature | -40°C to +65°C |
