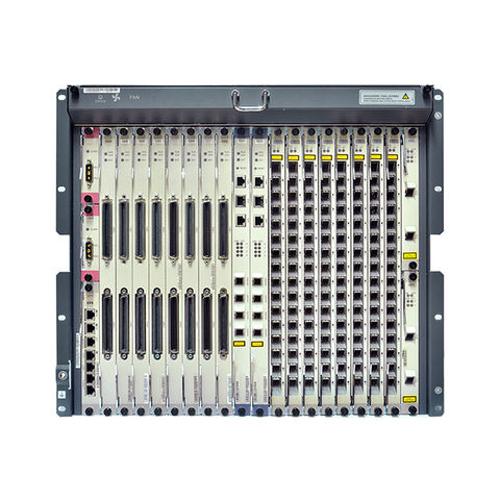

Huawei OLT MA5603T 6 service slots 96 GPON EPON ports
Short Description:
| Item | MA5603T |
| Supported cabinet | Indoor cabinet: N66E-18 Outdoor cabinet: F01D500, F01S300 |
| Board configuration | 2 slots for control boards 6 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. |
| Switching capacity of the backplane bus | 1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO) |
| Supported control board and its switching capacity | SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode SCUB: 48 Gbit/s SCUF: 128 Gbit/s |
| System Layer 2 packet forwarding rate | SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode SCUB: 48 Gbit/s SCUF: 128 Gbit/s |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load | BER of a port when the port transmits data in full load < 10 e-7 |
| System reliability specifications | System: redundant configuration. System availability for the typical configuration: > 99.999% |
| ADSL2+ ports in a subrack | ≤384 |
| VDSL2 ports in a subrack | ≤384 |
| EFM SHDSL ports in a subrack | ≤192 |
| TDM SHDSL ports in a subrack | ≤96 |
| POTS ports in a subrack | ≤384 |
| ISDN BRA ports in a subrack | ≤192 |
| ISDN PRA ports in a subrack | ≤64 |
| GPON ports in a subrack | ≤96 |
| 10G GPON ports in a subrack | ≤48 |
| P2P FE ports in a subrack | ≤288 |
| P2P GE ports in a subrack | ≤288 |
| GE upstream ports | ≤8 |
| 10GE upstream ports | ≤4 |
| PON upstream ports | ≤2 |
| extended subracks connected to a master subrack | ≤32 |
