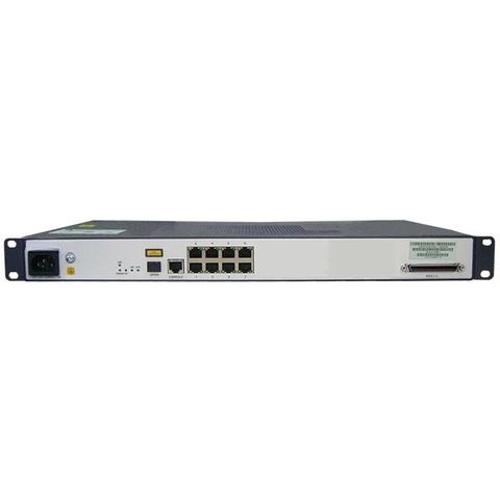

fiber onu MA5620 8 ports gpon
Short Description:
| Dimensions (H×W×D) | |
| 43.6 mm × 442 mm × 220 mm | 43.6 mm × 442 mm × 220 mm (24 × FE and 16 × FE) 43.6 mm × 250 mm × 220 mm (8 × FE) |
| Network-side port | Each of them provides two uplink ports that use the SFP optical modules and automatically adapt to GPON and GE modes. The two uplink ports can be configured as follows: • 2 × GPON • 2 × GE (optical) • 1 × GE (optical) + 1×GPON |
| User-side port | |
| • 24 × FE + 24 × POTS • 16 × FE + 16 × POTS • 8 × FE + 8 × POTS | • 24 × FE • 16 × FE • 8 × FE |
| Operating temperature | -40°C to +55°C; startup at -25°C |
| Humidity | 5% to 95% (non-condensing) |
| Heat Dissipation mode | Not providing fans; passive cooling |
| Lightning Protection capability | LAN:6 KV;POTS:4 KV |
| Power supply | AC: 220 V/110 V |
| Weight | |
| 24 ports: 2.3 kg 16 ports: 2.29 kg 8 ports: 2.28 kg | 24 ports: 1.92 kg 16 ports: 1.91 kg 8 ports: 1.15 kg |
