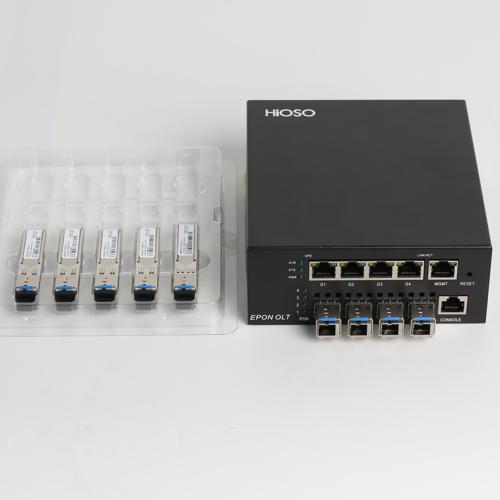

HiOSO Ftth olt 4 uplink ports epon xpon mini epon 4pon olt epon with 4 PX20+ PON SFP moules

Short Description:


Product Detail

Product Name HA7004S EPON OLT
Wavelength 1310(RX)/1490(TX)
Optical power +2.5~ +7dBm
Receiving Sensitivity -27dBm
Maximum distance 20km
Maximum optic ratio 1:64
Capacity 4PON System, 256 ONUs
MAC 16K
Port 4 Gigabit SFP PON ports
4 GE Uplink ports
1 FE management port
1 RS232 DB9 serial port
MTBF 100000 hours
Feature Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Standard Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Network management Support GUI management based on SNMP (work with rack)
Support WEB / CLI

xxxxxxx.
