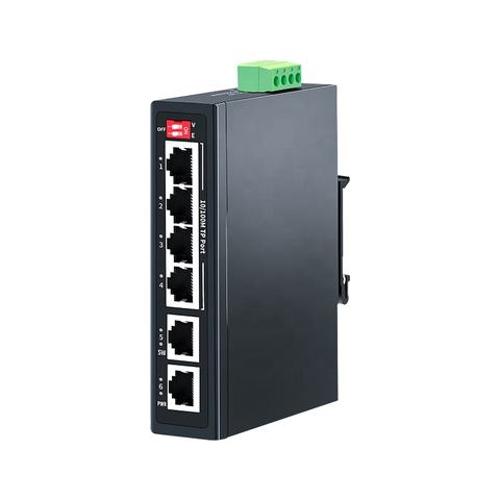

6 Port 100M Industrial Switch,2 Port Uplink DIN 35 Rail 100Mbps Network Ethernet Fast Switch IP40 Lightning Protection Plug&Play
Short Description:
| Power | DC (12-55V) |
| Ethernet Port | 4*10/100M ports +2* 10/100M Uplink Ethernet port |
| Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3x |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 m) 10BASE-T:Cat6 or more UTP(≤250 m) 100BASE-TX: Cat5 or more UTP(≤100 m) |
| DIP | V(VLAN): Port isolation mode. In this mode, the ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on. OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed E(Extend): Link extension mode, 1-4 ports data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on; |
| Power Supply | Power input: DC 12~55V power supply wiring: 4 PIN terminal block (redundancy V1+V1-,V2+V2-) |
| Working Environment | Operating Temperature: -40~75℃ Storage Temperature: -40~85℃ Humidity: 5%~95 %( non-condensing) |
| Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
| Mechanical Structure | Shell protect grade: IP40 Installation: DIN rail N.W:0.4KG G.W: 0.47KG(without power supply) Product Dimension (L×W×H): 119MM*87MM*28MM Package Dimension(L×W×H): 175MM*130MM*55MM |
| Certification | CE , FCC , ROHS |
| Package Contents | Industrial Switch: 1 unit User Guide:1unit Certificate warranty card:1unit |
| MTBF | 100,000 hours |
| Bandwidth | 1.6Gbps |
| Cache | 512K |
| Chipset | RTL8309NI |
| Package Forwarding Rate | 0.8928Mpps |
| MAC address | 2K |
| Forwarding mode | Store-and-forward |
