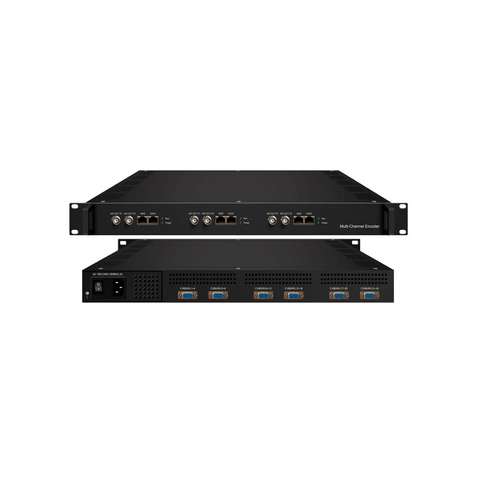

8 in 1 H 264 AV Input SD Encoder with ASI
Short Description:
| Input | |
| 8 CVBS, BNC interface | SNK6006A |
| V/A: 8xSD-SDI input with embedded audio | SNK6006A-D |
| Video | |
| Resolution | PAL: 720*576/352*288/320*240/320*180/176*144/ 160*120/160*90,50Hz |
| Encoding | MPEG-2 / H.264 |
| Bit-rate | 0.25~15Mbps for H.264 encoding0.5~15Mbps for MPEG-2 encoding |
| Rate Control | CBR/VBR |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| Audio | |
| Encoding | MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2 |
| Sampling rate | 48KHz |
| Bit-rate | 32Kb/s~384Kb/s (each channel) |
| Multiplexing | 1 ASI input multiplexed with local 8 channels of TS |
| Stream output | 2*ASI output, BNC interface |
| System function | LCD/keyboard operating, NMS(SNMP/Web) supporting |
| Miscellaneous | |
| Dimension (W× L× H) | 482mm×455mm×44mm |
| Approx weight | 4kg |
| Temperature | 0~45℃(work), -20~80℃(Storage) |
| Power | AC 100V-220V±10%, 50/60Hz |
| Consumption | 25W |
